Milk Multicore Cable DSub / DSub 1m

MILK Multicore Cable DSub / DSub 1m

The MILK Multicore Cable DSub / DSub 1m is a 1-meter multicore cable equipped with two D-Sub connectors, designed to establish multipole connections between compatible audio equipment. Its shielded multicore construction is designed to organize multiple signal lines within a single cable, offering a compact solution for studio and professional audio system connections.

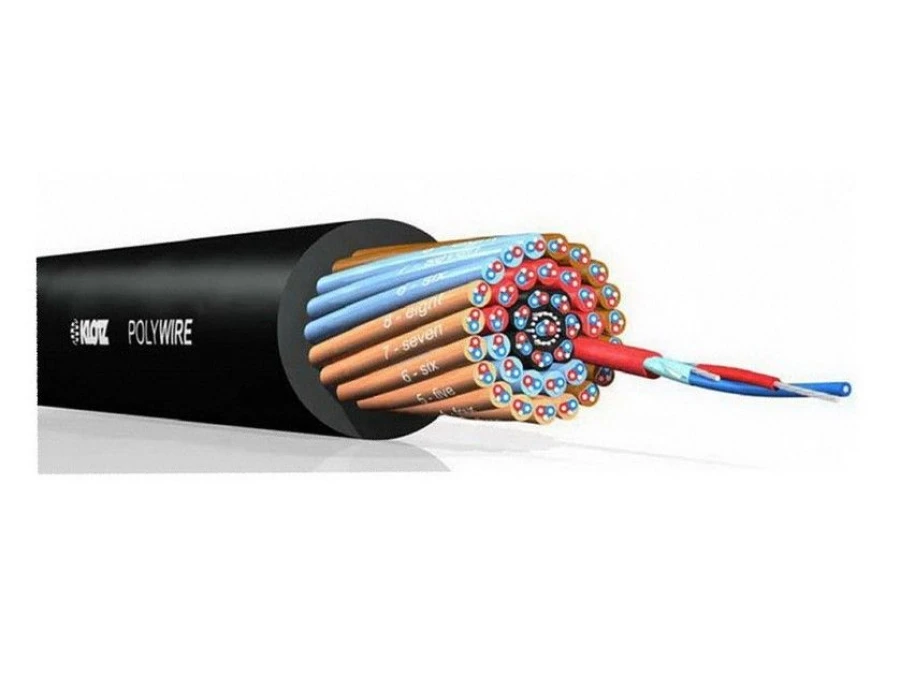

Multicore Construction and Copper Conductors

The cable uses stranded bare copper conductors, with a structure consisting of 7 wires measuring 0.20 mm each and a nominal conductor cross-sectional area of 0.22 mm². This configuration combines a flexible stranded structure with a cross-sectional area suitable for audio signal transmission.

The conductors are insulated with polyethylene (PE) and color-coded in red and blue to facilitate identification of the conductors within each pair.

Individual Pair Shielding

Each pair is equipped with shielding consisting of an AL/PETP composite foil, combined with a stranded tinned copper drain wire. This structure helps shield the individual pairs and limit unwanted crosstalk between signal lines.

Pair Identification and Outer Sheath

The pairs are organized into groups of eight and identified by numbered, color-coded PVC jackets—a solution that facilitates the identification and management of the lines during installation and wiring.

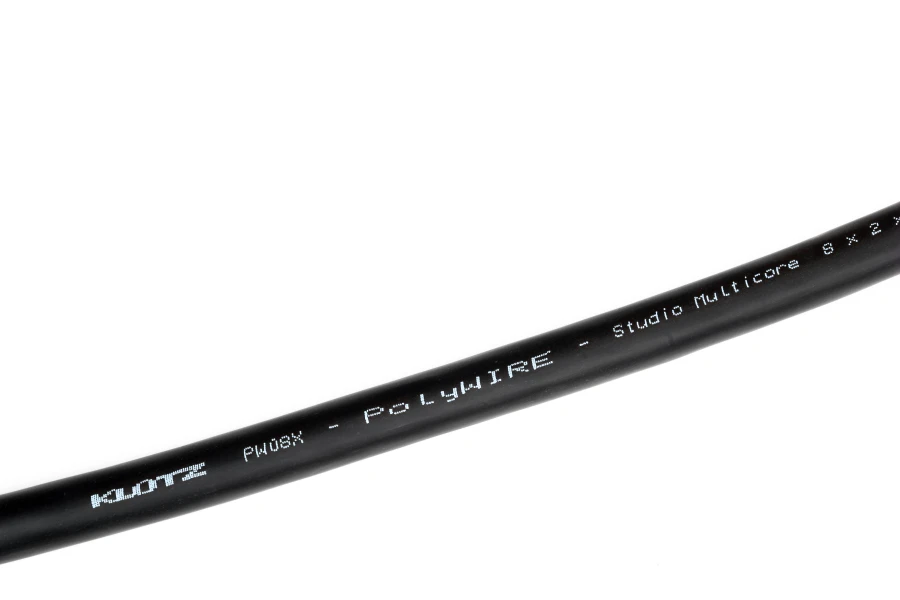

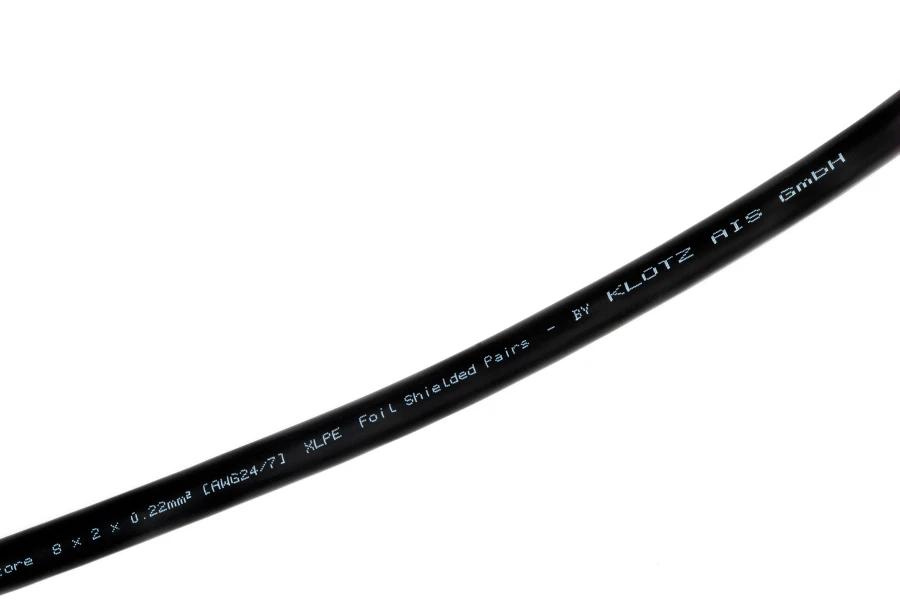

The outer jacket is made of black, soft, opaque PVC, with an outer diameter of the multicore cable of approximately 12.5 mm. This construction provides external protection suitable for use in audio connections.

Electrical Characteristics

• Conductor resistance: less than 85 Ω/km.
• Crosstalk: greater than 100 dB at 15 kHz, according to the technical specifications provided for the cable.

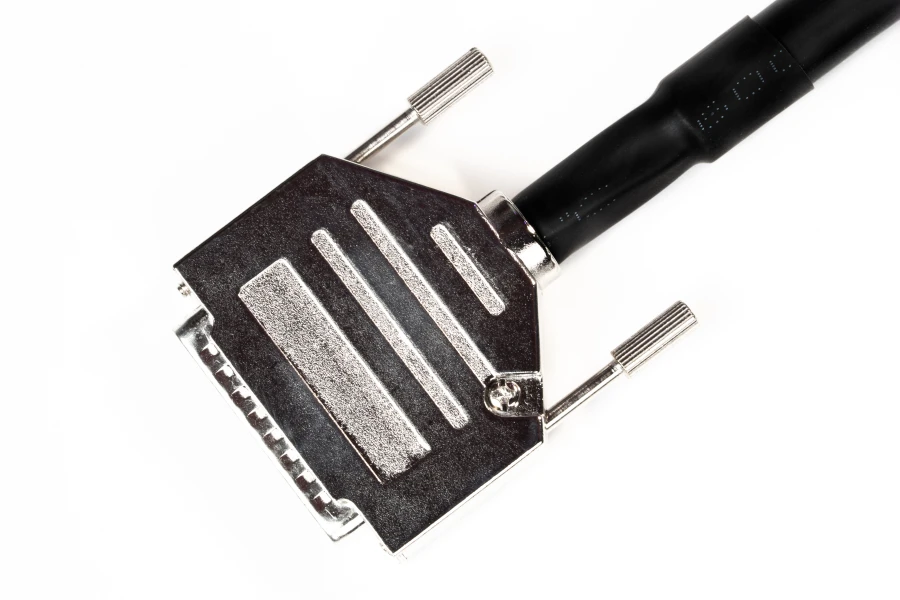

D-Sub Connectors and Length

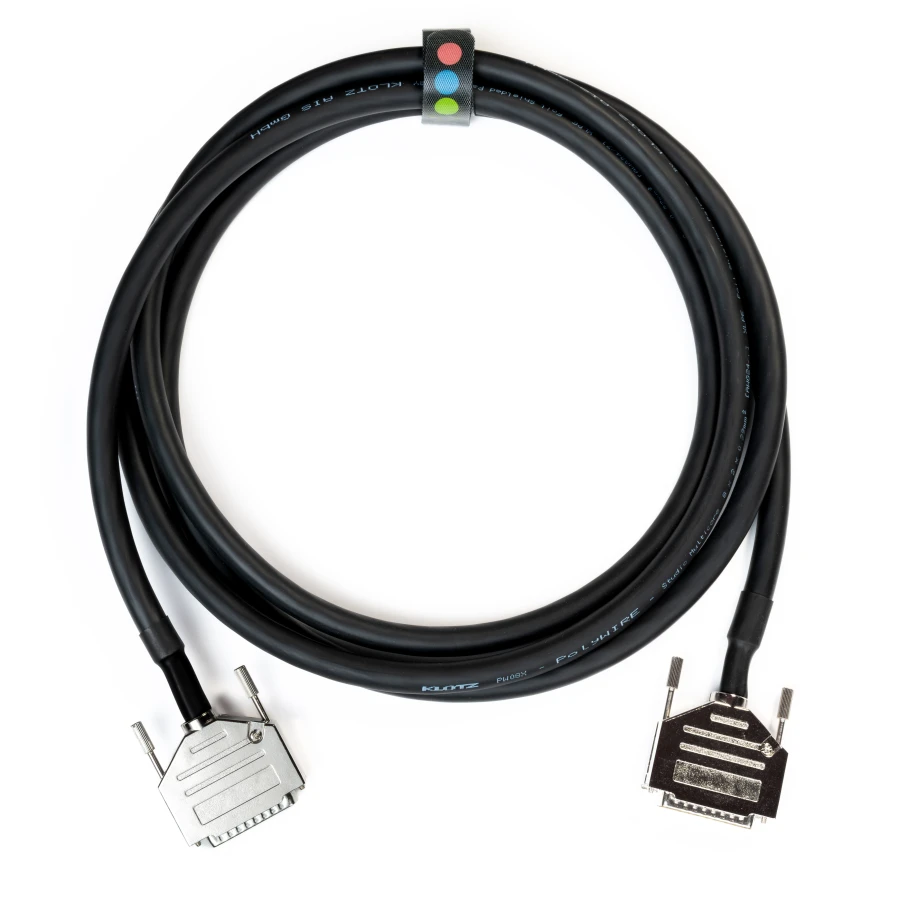

This MILK version is 1 meter long and is terminated with two D-Sub connectors, one at each end. The cable allows for multipole connections between devices equipped with compatible interfaces. The number of pins and the specific connector model are not specified.
