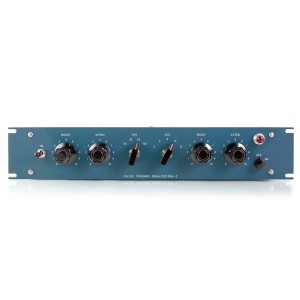

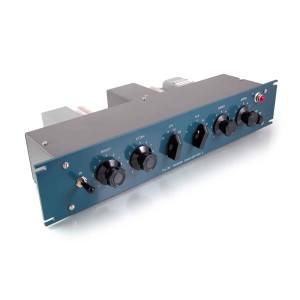

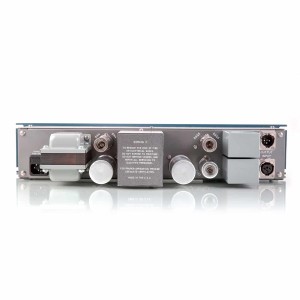

Pultec Pulse Techniques EQH-2

Single-channel Tube Equalizer with Class A Output Stage

Pultec Pulse Techniques
SKU: 56534

4.388,00 € 3.687,39 + VAT

  • Verfügbar
  • Clock icon Normalerweise versandt in 8-10 Arbeitstage
  • Same Class A output stage as the popular MEQ-5 equalizer
  • Similar to the iconic EQP-1A equalizer but with a more transparent character
  • Fixed 12kHz Attenuation
  • Fixed HF bandwidth
  • 20, 30, 60, 100 CPS shelf boost, 0 – 13.5 dB
  • 20, 30, 60, 100 CPS shelf attenuate, 0 – 17.5 dB
  • 3, 5, 8, 10, 12 KCS peak boost, 0 – 18 dB;
  • 10 KCS shelf attenuate, 0 – 16 dB
  • Input Transformer: 600 Ohms
  • Output Transformer: 600 Ohms
  • Noise: Below -75 dBm
  • Distortion: ≤ 0.15% at +10 dBm into 600 Ohms
  • Amplifier: Flat, 20 CPS to 20 KCS, +0 / -1 dB, ref 1 KCS
  • Tubes: 1 ea 12AX7, 6AQ5, 6X4

Pultec Pulse Techniques EQH-2

Equalizzatore valvolare a canale singolo con stadio di uscita di classe A

Introdotto originariamente nel 1956, il Pultec EQH-2 è un'opzione compatta del modello 3U EQP-1. Le curve boost/atten a bassa frequenza sono identiche a quelle dell'EQP-1A e i centri di frequenza di boost di picco ad alta frequenza sono paragonabili a quelli dell'EQP-1A. Tuttavia, le forme delle curve di boost di picco sono leggermente diverse, a causa delle diverse scelte di Ls e Cs. Il Pultec EQH 2 ha una larghezza di banda fissa per l'aumento di picco ad alta frequenza e una frequenza di attenuazione fissa ad alta frequenza di 10 kHz. L'amplificatore di linea è lo stesso stadio di uscita di classe A minimalista utilizzato nel MEQ-5. Molti ingegneri credono che fornisca un suono più trasparente rispetto all'EQP-1A.

Specifiche Tecniche

  • 20, 30, 60, 100 CPS shelf boost, 0 – 13.5 dB
  • 20, 30, 60, 100 CPS shelf attenuate, 0 – 17.5 dB
  • 3, 5, 8, 10, 12 KCS peak boost, 0 – 18 dB;
  • 10 KCS shelf attenuate, 0 – 16 dB
  • Input Transformer: 600 Ohms
  • Output Transformer: 600 Ohms
  • Noise: Below -75 dBm
  • Distortion: ≤ 0.15% at +10 dBm into 600 Ohms
  • Amplifier: Flat, 20 CPS to 20 KCS, +0 / -1 dB, ref 1 KCS
  • Tubes: 1 ea 12AX7, 6AQ5, 6X4

Channels

1 (Mono)

Hardware format

Rack
