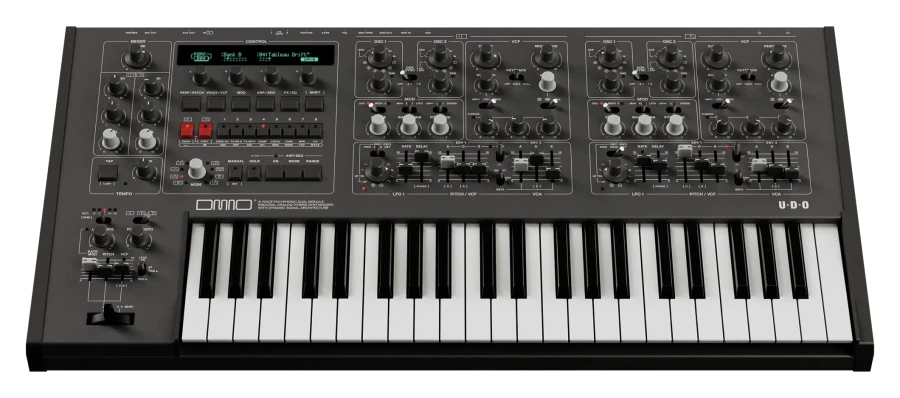

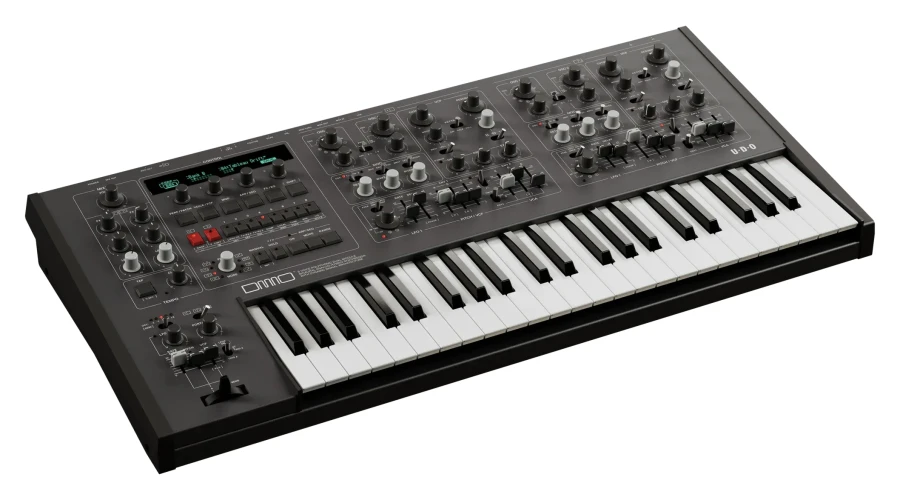

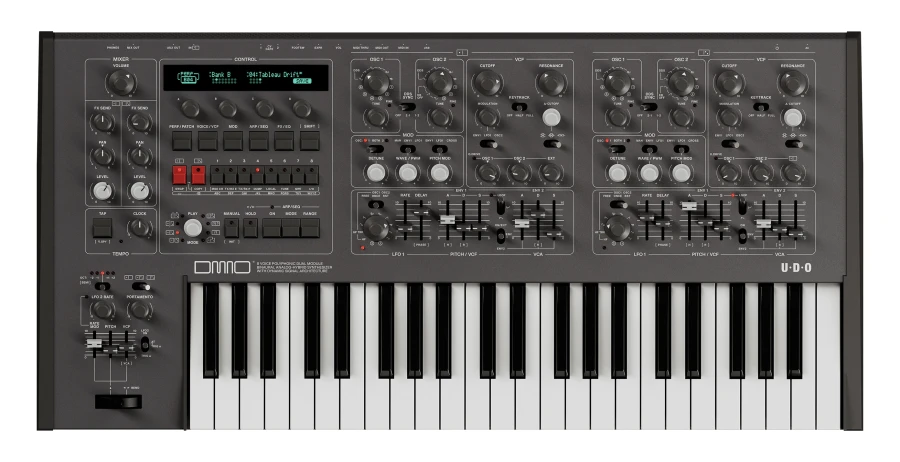

UDO Audio DMNO Keyboard black (8-voice, 2-part multitimbral)

Name: UDO Audio DMNO Keyboard black (8-voice, 2-part multitimbral)
Brand: UDO Audio
SKU: 98035
Price: 2433.61 EUR
Availability: BackOrder

Binaural polyphonic 8-voice 2-part multitimbral synthesizer - Black

SKU: 137582

Binaural polyphonic 8-voice 2-part multitimbral synthesizer - Black

8 voices of polyphony (4 voices in Binaural mode)
2 multitimbral parts with two independent synths (DMNO 1 & 2)
Dual analog/digital hybrid engine with FPGA oscillators
Dynamic Multi-Core Stereo VCF analog per-voice filter
8 Play Modes for creative interactions between the two timbres
Binaural architecture with stereo analog path
Built-in 24-bit USB audio interface (2 In / 2 Out)
32-bit DSP digital effects: Delay, Reverb, Distortion, Chorus, EQ
MIDI synchronizable multi-mode arpeggiator with Smart Hold
FATAR 44-key keyboard with Aftertouch
Professional construction, premium components, zero compromise

UDO Audio DMNO Keyboard Black: binaural hybrid synthesis without compromise

The UDO Audio DMNO Keyboard Black is an 8-voice polyphonic hybrid synthesizer designed to deliver a deep, three-dimensional and highly performative sound experience. With its two independent 4-voice fully multitimbral engines, it enables splits, layers and advanced configurations ideal for live sets, production studios and experimental sound design.

The architecture combines ultra-high resolution FPGA digital oscillators with a fully analog per-voice filter path, creating a perfect balance of digital precision and analog warmth.

FPGA Oscillators and Super-Wave Stereo

Each engine integrates two "super-wave" FPGA oscillators with a central oscillator and six secondary oscillators that can be dynamically phased in the stereo field. This enables the generation of wide, thick and aliasing-free sounds, perfect for powerful bass, cinematic pads and defined leads.

Binaural mode: 3D spatiality and depth

In Binaural mode, each voice uses two independent full paths (left/right), allowing detune and de-phase between oscillators, filters and amplitude. The result is an extremely immersive three-dimensional spatiality. Four stereo "super voices" are available in this mode.

Dynamic Multi-Core Stereo VCF: per-voice analog filter.

The Multi-Core stereo analog filter, which is fully reconfigurable, can operate in parallel, stereo or series mode. Different types (low-pass, high-pass, band-pass, all-pass and phase shifter) with different slopes and combinations are available, always maintaining a musical character even in overdrive conditions.

8 Play Modes: creative interaction between DMNO 1 & 2

The 8 Play Modes allow you to instantly redefine the distribution of voices and the interaction between the two engines:

Single
Dual
Split
One-Two
Cycle
Random
Chaos
Series

32-bit DSP Effects and Advanced Arpeggiator

The 32-bit DSP digital effects chain includes:

Synchronizable delay with tempo, feedback and mode control
Reverb with size, pre-delay, lo-cut, damping and width
Multi-mode distortion (insert)
Chorus with rate, depth, mix and delay
EQ with low shelf, high shelf and parametric mid band

Multi-mode arpeggiator is MIDI synchronizable, equipped with Smart Hold and possibility of synchronization of LFO 1 and delay to internal or external clock.

Full studio and modular connectivity

MIDI DIN In / Out / Thru + USB MIDI class compliant
USB 24-bit 2 In / 2 Out audio interface
Stereo audio input with variable preamplifier
Gate detector and envelope follower built into the modulation matrix
Assignable stereo auxiliary output
2 assignable CV & Gate/Clock outputs (3.5mm)

FATAR 44-key keyboard with Aftertouch

The 44-key FATAR keyboard with aftertouch provides full expressive control. It includes intuitive modulation matrix, patch and performance management via high-contrast VFD display designed for instant access without complex menus.

Technical Specifications.
