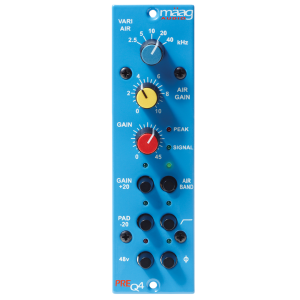

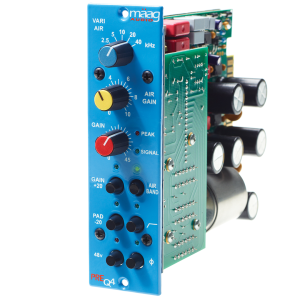

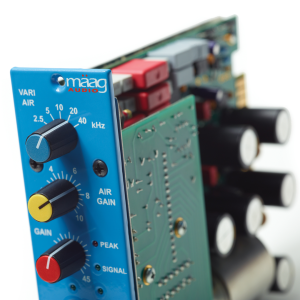

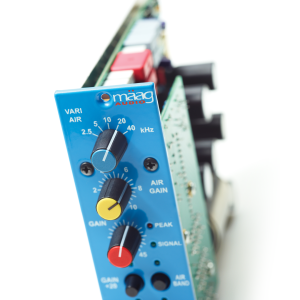

Maag Audio PREQ4 - 500

500 Series Microphone Preamplifier with Air Band

• Up to 65 dB of ultra-clean gain for ribbon microphones or quiet sources
• Variable Air Band® with up to +12 dB boost (2.5 - 40 kHz)
• Built-in smooth high-pass filter, -20 dB pad and phase inverter
• Status LEDs for all functions and signal/peak detection
• Designed for transparent tracking in the professional studio

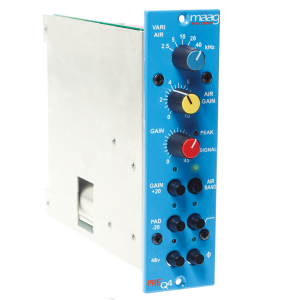

Maag Audio PREQ4-500: 500 Series Preamp with Air Band®

The Maag Audio PREQ4-500 is a compact microphone preamp in 500 Series format, a direct upgrade of the PREQ3. It offers an ideal combination of sonic transparency and timbral control through the integration of Maag Audio's renowned Air Band®. With a maximum gain of 65 dB, it is perfect for recording sessions with ribbon microphones or low-output sources.

Intuitive controls and musical filtering

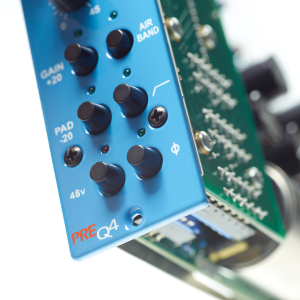

The PREQ4 is equipped with LED switches for 48V phantom, phase inversion, -20 dB attenuator, and smooth slope high-pass filter (-3 dB @ 70 Hz). The gain switch provides a choice of two ranges (+25-45 dB / +45-65 dB), while the microphone gain control is continuous and flanked by LEDs for signal present and peak.

Air Band®: brilliance without harshness

The Air Band® section includes a 6-position switch (2.5, 5, 10, 20, 40 kHz) with up to +12 dB boost, offering airy brilliance perfect for vocals, acoustic guitars and percussion, without introducing harshness. All features are designed to offer instant control and musical response in any tracking context.

Technical specifications.

• Maximum gain: 65 dB
• Frequency response: 10 Hz - 75 kHz (-3 dB)
• Input impedance (XLR): 150 Ω / 1.61 kΩ balanced
• Output impedance (XLR): 50 Ω balanced active
• EIN: -128 dBu (real noise: -96 dBu)
• Headroom: +27 dBu
• Max phase shift: 25°
• THD + Noise: < 0.007%.
