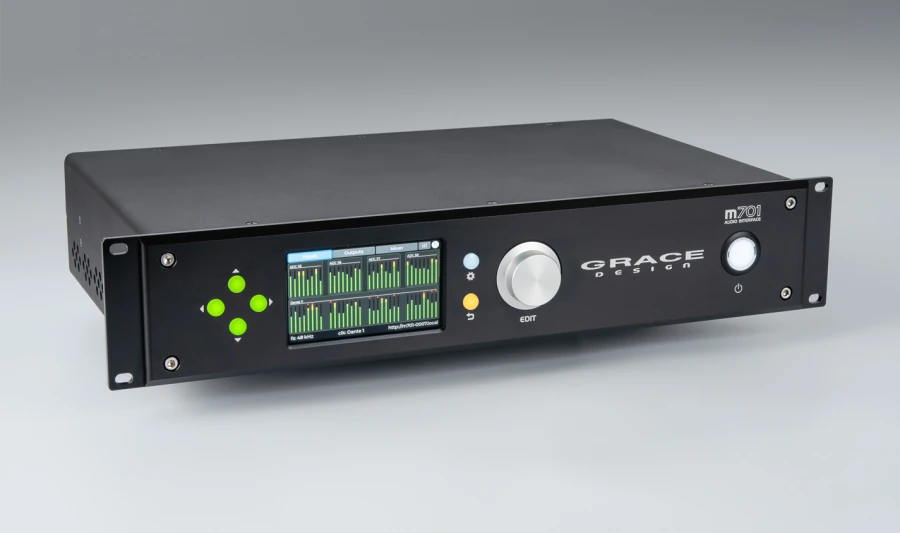

Grace Design m701 8x8 Dante - m701 base unit + 8 ch ADC, 8 ch DAC and Dante

Modular audio interface 8-channel AD/DA conversion and DANTE connection

• Grace Design m701 base unit with modular architecture
• 8-channel ADC module for high-quality analog-to-digital conversion
• 8-channel DAC module for transparent digital-to-analog conversion
• Dante connectivity for integration into professional audio networks
• Remote control via GraceNet via web browser
• 5-year transferable warranty included

Grace Design m701: versatility and quality for professional studios

The Grace Design m701 represents a complete, modular solution for the needs of professional recording studios and broadcast environments. In this configuration, the base unit is equipped with ADC and DAC modules of 8 channels each and Dante interface module, offering a compact yet powerful system for AD/DA conversion and audio distribution over a network.

Transparent high-definition audio conversion

Reference ADC and DAC Modules

The AD/DA modules installed in the system offer excellent audio performance through careful analog circuit design, precision clocking, and stable power supply. This attention to detail ensures transparent and musical conversion, perfect for high-fidelity audio production environments.

Dante connectivity for network integration

The Dante module enables simple and reliable connection with professional audio network systems, facilitating the distribution of multichannel signals between compatible devices. It is the ideal solution for modern studios that require flexibility and reliability in digital connections.

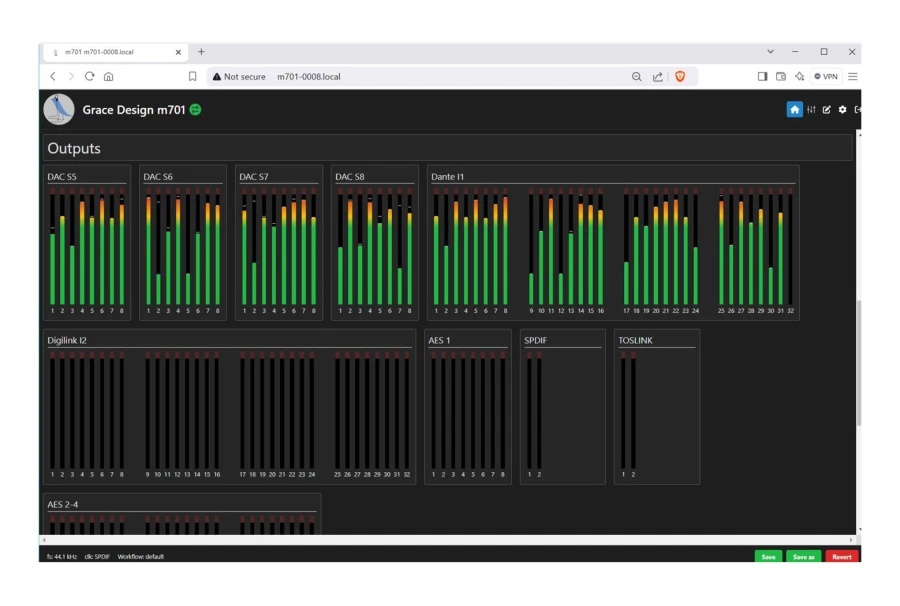

Flexible control with GraceNet

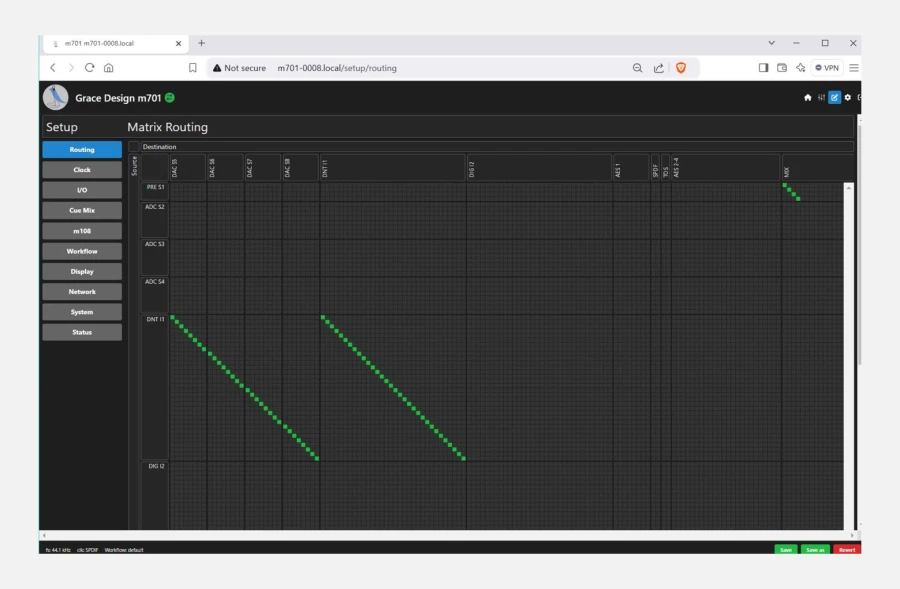

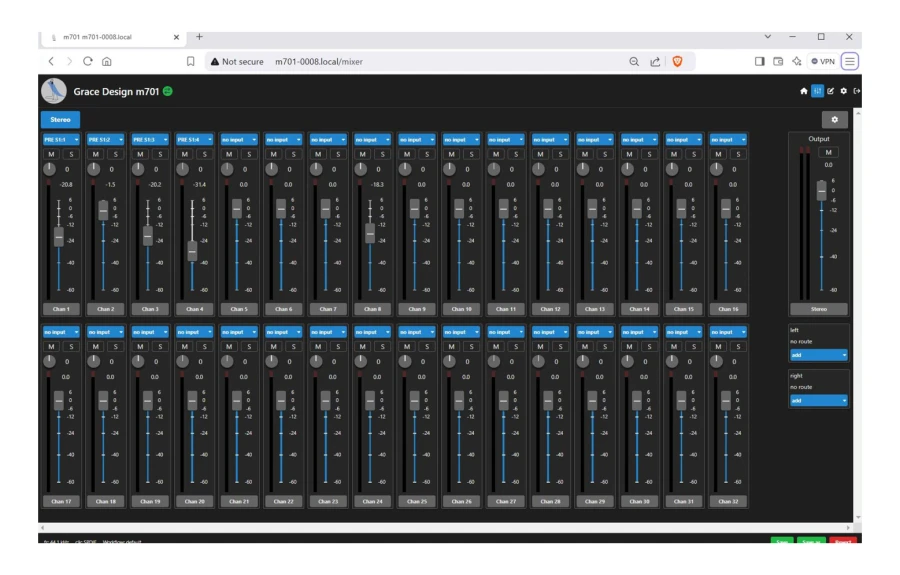

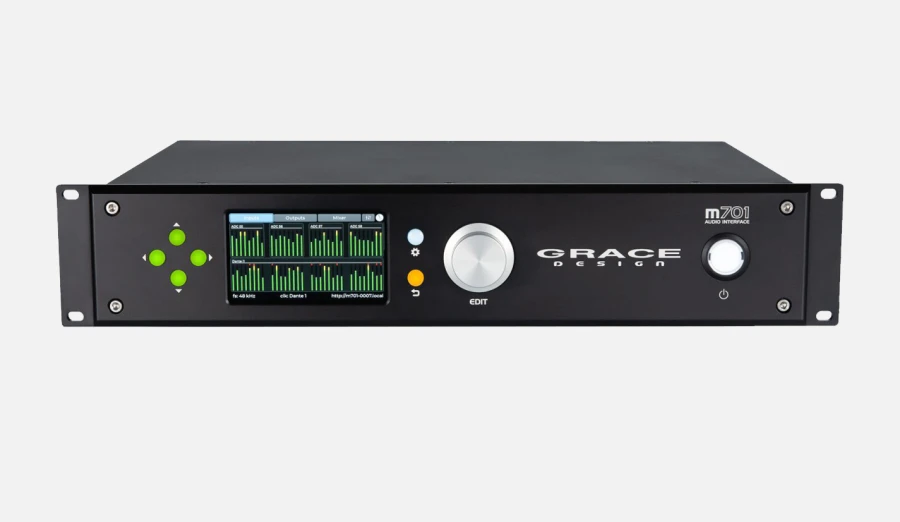

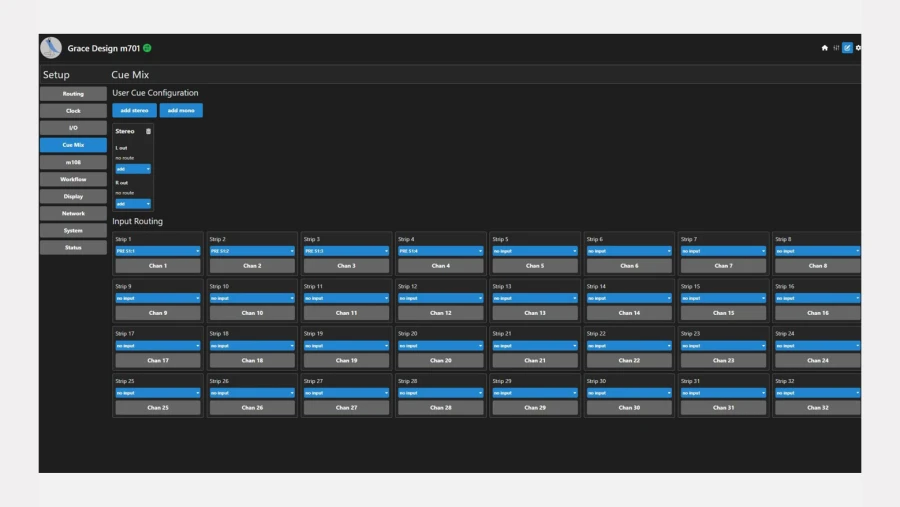

Management of the m701 interface is possible either through the front panel or remotely via GraceNet, an integrated web application accessible from any browser. This system enables complete signal monitoring, channel configuration, and low-latency cue mix creation.

Technical Specifications.

• Grace Design m701 base unit (2U rack)
• 8-channel ADC module
• 8-channel DAC module
• Dante module 32 channels
• Remote control via GraceNet (web browser)
• AD conversion: 0.5 ms (48kHz), 0.25 ms (96kHz), 0.12 ms (192kHz)
• DA conversion: 0.8 ms (48kHz), 0.4 ms (96kHz), 0.2 ms (192kHz)
• Built-in redundant power supply
• 5-year transferable warranty

Please note: Images shown may not exactly represent this configuration. Always check specifications before purchasing.
