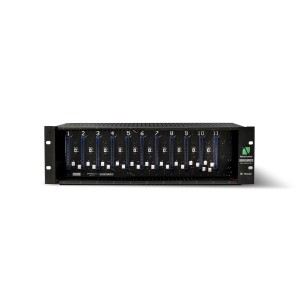

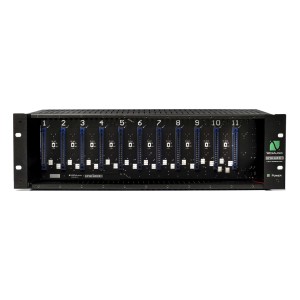

WesAudio SUPERCARRIER II

11-slot 500 series lunchbox with independent power supply per module

• Professional chassis for 500 series modules with 11 slots
• Compatible with the API 500 Series standard
• Independent slot power (ISP) technology with isolated power supply for each slot
• 100W external toroidal linear power supply
• Tantalum capacitors on each slot for noise reduction
• Dedicated XLR input/output connections for each slot
• DB-25 connection for the first 8 slots
• Internal switches for stereo link between modules
• Selectable 115V / 230V power supply
• Rugged construction designed for professional studios

The WesAudio Supercarrier II is a professional chassis for 500 Series modules designed to provide the highest quality power supply and operational stability in the studio. An evolution of the celebrated Supercarrier I, this second generation introduces proprietary ISP - Independent Slot Power technology, which provides a completely independent power supply for each of the 11 slots.

Thanks to this innovative architecture, each installed module operates as if powered by its own dedicated chassis, eliminating interference, noise and instability typical of shared power supplies.

ISP Technology - Independent Slot Power

ISP technology is one of the main strengths of the Supercarrier II. In fact, each slot has its own isolated linear power circuit, ensuring consistent performance even with particularly power-hungry modules.

This approach makes it possible to:

• eliminate interference between modules
• reduce unwanted noise, clicks and pops
• ensure stability even with complex processing chains
• maintain the highest sound quality of the analog signal

Tantalum capacitors for a cleaner signal

Each slot is equipped with tantalum capacitors that help filter and stabilize the entire frequency spectrum of the power supply. This system further improves signal cleanliness by reducing any possible electrical interference.

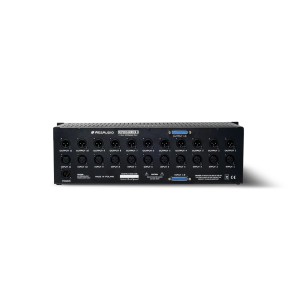

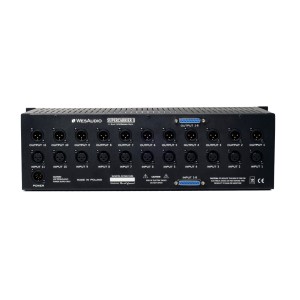

Professional studio connections

The Supercarrier II offers complete connections for seamless integration into professional studios:

• Balanced XLR inputs and outputs for each slot
• DB-25 connection for the first 8 slots
• Internal switches for stereo link configurations

This flexibility makes the chassis ideal for complex analog processing configurations.

High-performance toroidal power supply

The chassis is powered by an external 100W toroidal linear power supply designed to provide stable power distribution and support even high-power analog modules.

The power supply supports both 115V and 230V voltages, making the device usable in any professional environment.

Ideal environment for 500 series modules

With its combination of isolated power supply, advanced filtering and rugged construction, the WesAudio Supercarrier II is an ideal solution to accommodate 500 series compression, equalization and preamp modules while maintaining the highest level of audio quality.

Specifications.

• Type: chassis for 500 series modules
• Number of slots: 11
• Compatibility: standard API 500 Series
• Power supply technology: ISP (Independent Slot Power)
• Capacitors: tantalum on each slot
• Connections: XLR input/output for each slot
• DB-25 connection: first 8 slots
• Stereo link: internal switches
• Power supply: external linear toroidal 100W
• Available current: up to 5A
• Power supply: 115V / 230V selectable
• Power consumption (empty frame): 5W
• Dimensions: 135 × 483 × 182 mm
• Unit weight: 3.7 kg
• Power supply unit weight: 1.7 kg
• Warranty: 2 years
