Lunchbox 500 series 10 slots
€ 1.085,00 € 889,34 + VAT
Normally shipped in 8-10 working days
The WesAudio _TITAN is a next-generation chassis for 500 Series modules designed to bring digital recall to the world of analog hardware. Designed as a complete platform for hybrid studios, the TITAN extends the classic 500 series standard by introducing the ng500 system, which allows control and recall of modules via a single USB or Ethernet connection.
With this architecture, the TITAN is not just a 10-slot lunchbox, but a true operations center for modern analog processors, capable of integrating digital recall, remote stereo links, and future advanced modules within a single professional chassis.
The WesAudio TITAN was created to simplify workflow with analog hardware, offering the ability to manage up to ten modules through a single connection. It is compatible with both standard 500 Series modules and ng500 modules, which is the new open extension developed by WesAudio to integrate digital control, recall and advanced communication functions.
This makes TITAN an ideal solution for those who wish to retain the sonic character of analog without sacrificing the operational convenience typical of modern productions.
One of the strengths of the WesAudio _TITAN is the ability to control and recall all installed modules via a single connection:
This structure reduces cabling, simplifies integration in the studio, and enables faster and more efficient management of multiple modules simultaneously.
The chassis integrates a high-end linear power supply capable of delivering up to 5A, providing the stability needed even for particularly power-hungry modules. This ensures reliable performance, low noise, and proper operation of installed processors.

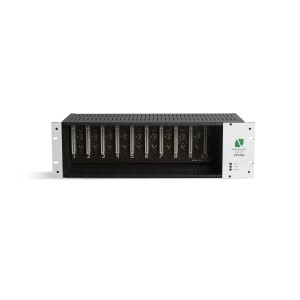

The TITAN provides 10 slots compatible with traditional 500 series modules and ng500 devices. This makes it possible to create a custom configuration consisting of digitally recallable compressors, equalizers, preamplifiers and other analog processors.
The chassis supports integrated stereo links with compatible modules. Management can be done directly from the dedicated software, avoiding complex manual configurations within the chassis.

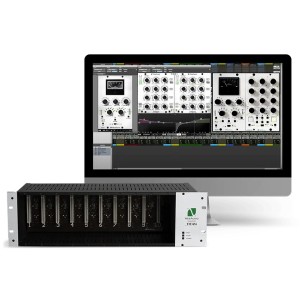

Through the standalone application, the status of stereo links between modules can be remotely configured and controlled, making the system much more practical in professional environments where speed and accuracy are critical.

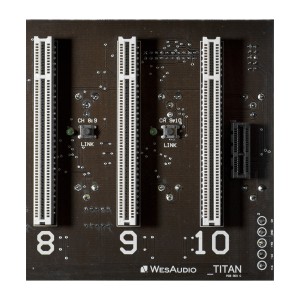

One of the most innovative elements of the WesAudio TITAN is the IAC (Internal Audio Connector) system. Indeed, slot 10 integrates a special connector that routes audio signals to and from slots 1 through 8, paving the way for future integrations with:
Source selection for each slot is handled by analog relays and dedicated software, avoiding routing conflicts and ensuring clean signal management.
The TITAN is based on the ng500 - Next Generation 500 Series platform, an open specification developed to also allow other manufacturers to create digitally controlled analog devices that are compatible with the system. This approach makes the chassis a future-oriented solution suitable for studios that wish to invest in an expandable ecosystem.

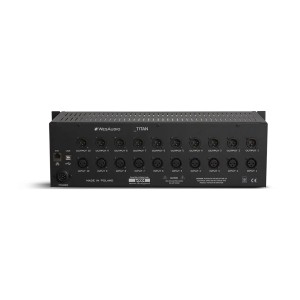

The panel offers comprehensive connectivity for integration into professional audio chains:
Specifications.
Hardware format
Rack
