BAE 1073D

Name: BAE 1073D
Brand: BAE Audio
SKU: 81602
Price: 2500.00 EUR
Availability: BackOrder

Neve 1073 Style Preamplifier with extra functionalities - 500 Series

SKU: 23883

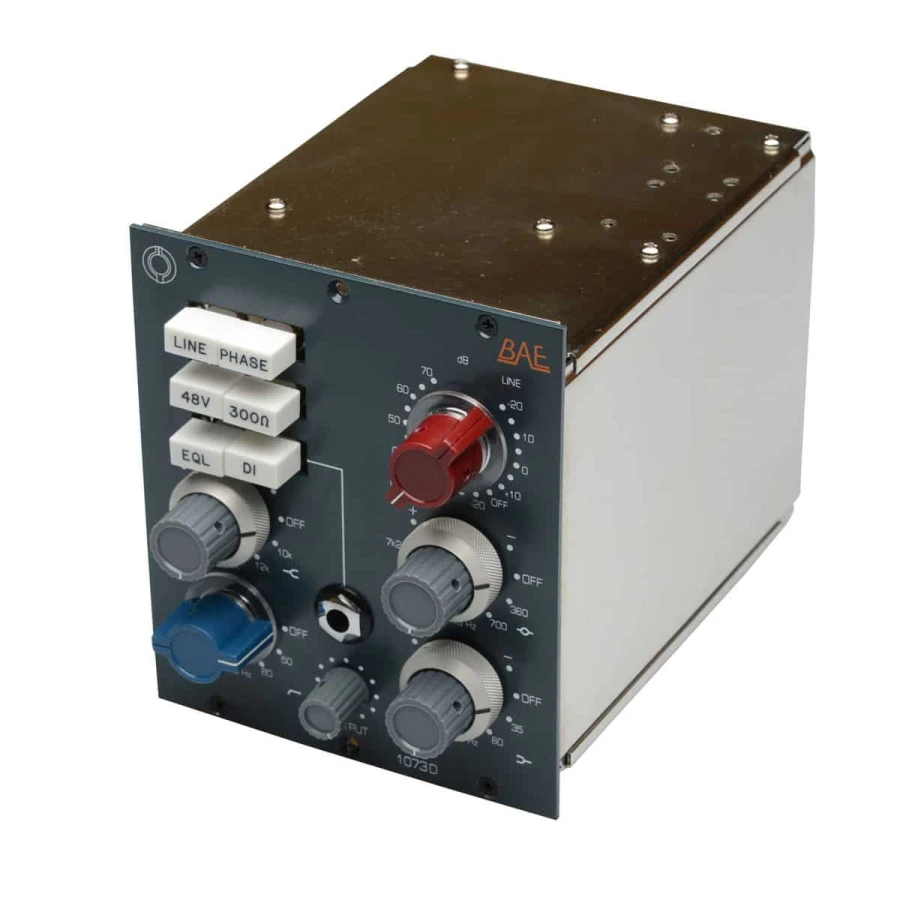

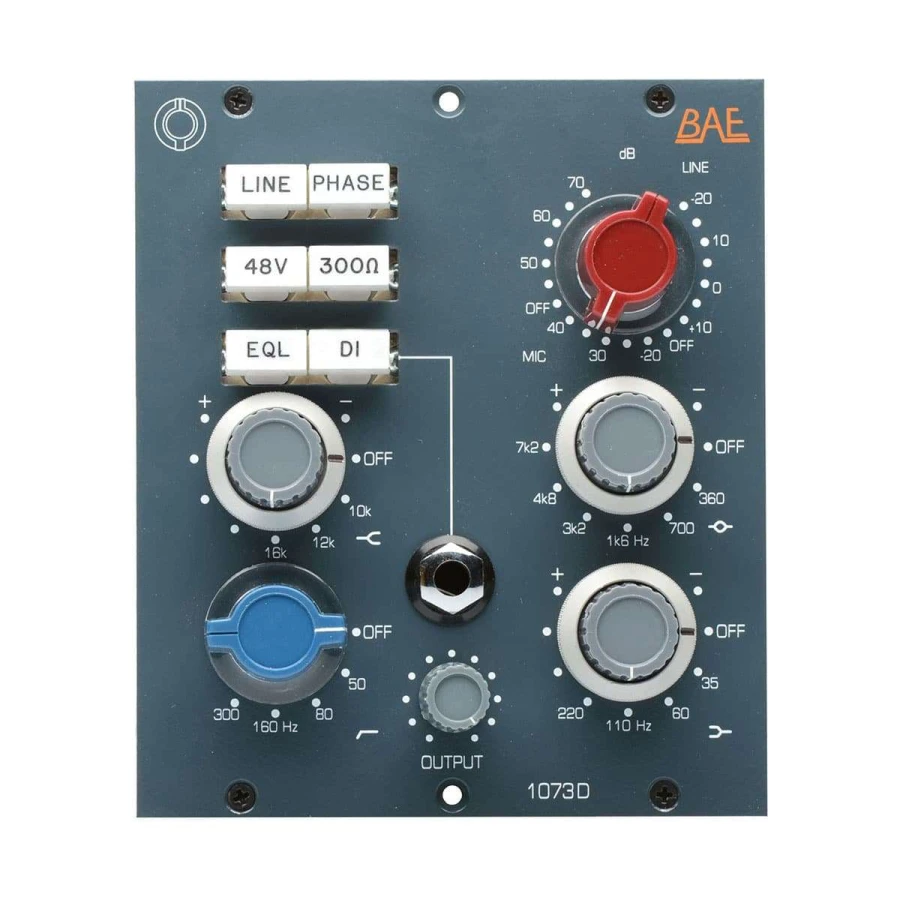

BAE 1073D

Neve 1073 Style Preamplifier with extra functionalities - 500 Series

The 1073D (Deluxe) is essentially a 1073 module with extra high frequencies and a direct input for the 500 series market. Built using the same exact parts as the 10 series module, the 1073D features Carnhill transformers, Elma gold plated switches and Canford wire making this the best sounding Class A mic‐pre EQ module on the block. Because BAE did not want to compromise, the parts are such that they made this a 3 space wide module for optimal quality in contrast to building a smaller rack space version lacking the same premium components.

High Frequency: +/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz
Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
Mid Range: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
High Pass Filter: 50Hz, 80Hz, 160Hz & 300Hz
Phase Button: 180°

Specifications

Frequency Response 10Hz to -3dB at 55kHz 3 Band Equaliser HF: +/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz MF: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz High Pass Filter 50Hz, 80Hz, 160Hz & 300Hz Mic Input Impedance ≈1200/300Ω Line Input Impedance 10kΩ DI Input Impedance ≈150kΩ Output Impedance 35Ω Common Mode Rejection Ratio 100dB min @ 60Hz Maximum Output Level +27.4 dBu @ 600Ω Power Requirements +/- 16VDC - 120mA Gain dB 0 to 70 dB Equivalent Input Noise -110 dBu; Unweighted 300kHz Bandwidth Weight 5 LBS/2.72 KG Dimensions in Inches (Module/Rackmount) 4.5W x 5.25H x 5.5D

Channels

1 (Mono)

Hardware format

500 Series

€ 2.500,00 Ex VAT
