Maag EQ4 500 (Black)

500 Series 6 Band Equalizer with Air Band

• 500 Series format, perfect for 500VPR racks
• 6 EQ bands, including the famous Air Band® up to 40 kHz
• Musical curves for precise and transparent interventions
• In/Out switches and LEDs for signal present and peak
• Ideal for mixing and recording

Maag Audio EQ4-500-BK: 500 Series EQ with Air Band

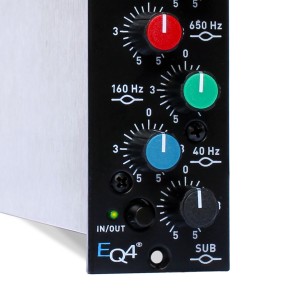

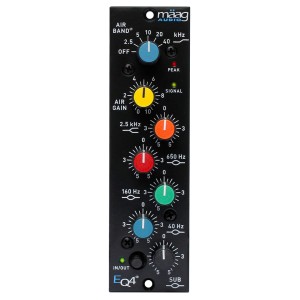

The Maag Audio EQ4-500-BK is a 6-band equalizer designed for single slot in the 500 Series format, inspired by the famous EQ4M. Perfect for those who desire a refined sound sculpture, it integrates four fixed-frequency bell bands, a 2.5 kHz shelf EQ, and the famous Air Band® selectable between 2.5 and 40 kHz.

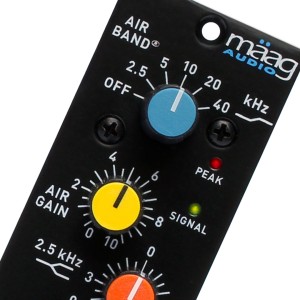

Advanced frequency control with the Air Band

With the Air Band, high frequencies can be emphasized up to +20 dB without generating harshness. The main bands offer an adjustment range of +15/-4.5 dB with a center position at 0 dB for a neutral response.

Reliability and accuracy in any studio

Equipped with LEDs for signal (-20 dBu) and peak (+23 dBu), the EQ4-500-BK provides instant visual feedback. The bypass switch allows you to instantly compare the processed and original sound, giving you maximum control when mixing and tracking.

Technical Specifications.

• Frequency response: 10 Hz - 75 kHz (-2 dB)
• Input impedance: 48 kΩ balanced
• Output impedance: 50 Ω balanced
• Headroom: +25 dBu
• THD + Noise: < 0.005%
