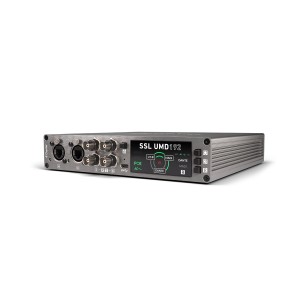

SOLID STATE LOGIC SSL UMD192
Portable usb interface with MADI and Dante connections
Portable usb interface with MADI and Dante connections
- Up to 192 audio channels via USB 3.0
- MADI connectivity: 6x BNC with redundant mode
- Dante AoIP with AES67 and ST 2110 (DDM) support
- Mac and Windows compatible (ASIO/WDM drivers)
- Flexible power supply: AC, PoE, USB
- Compact and portable ½ rack unit format
Professional USB-MADI-Dante bridge for studio, live and broadcast use
SSL UMD192 is the ideal interface for connecting professional environments that require high performance and absolute flexibility. Designed for recording studios, broadcast and live, this interface enables bidirectional transfer of audio between USB, MADI and Dante, allowing each format to receive dedicated streams for maximum operational control.
Multi-channel audio and ultra-low latency
UMD192 supports 192 channels at 48/96 kHz or 128 channels at 192 kHz. With Dante AoIP compatibility (including AES67 and ST 2110), it is perfect for advanced AoIP setups, with Dante latency as low as 0.25 ms. Clock management is flexible, selectable between Dante and MADI.
Advanced redundancy for mission-critical environments

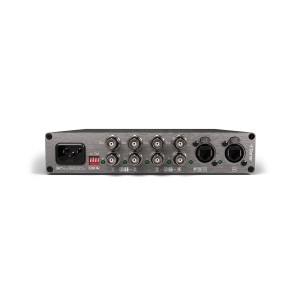

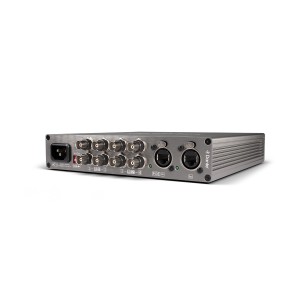

The 6 MADI BNC pairs can be configured in redundant mode, enabling 3 redundant dual MADI connections-ideal for broadcast and live setups where reliability is critical. Power can also be redundant with combinations of AC, PoE and USB.
Intuitive control from the front panel

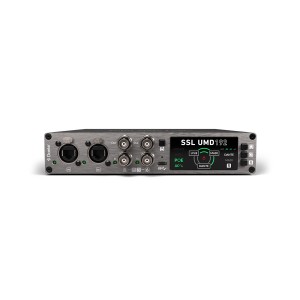

The UMD192's front panel offers clear indicators for signal flow, synchronization, power status, and connection. Controls are protected by a lock mode to prevent accidental changes during use.
Full compatibility and solid construction
Compatible with macOS (plug-and-play) and Windows (ASIO/WDM drivers), UMD192 integrates easily into any DAW environment. It is also an ideal choice for setups with Oracle, ORIGIN or Harrison 32Classic SSL consoles.
Technical Specifications.
- 192 channels at 48/44.1 kHz, 192 channels at 96/88.2 kHz, 128 channels at 192/176.4 kHz
- USB 3.0 class-compliant interface
- 6 MADI BNC pairs with redundant mode
- Dante AoIP, AES67 and ST 2110 support (with DDM)
- Dante latency down to 0.25 ms
- Clock from Dante or MADI (port 1)
- 2x ruggedized Ethernet ports (Primary and Secondary)
- Compatible with macOS 12+ (plug-and-play), Windows 11 (with drivers)
- USB Type-C connectivity (including C-C and A-C cables)
- Powered via AC, PoE or USB with failover support
- Portable ½ RU format: suitable for desktop, console side or rack mount
Input format
MADI, Dante
Output format
MADI, Dante
Hardware format
Desktop
Interface
Usb
€ 2.269,67 Ex VAT
