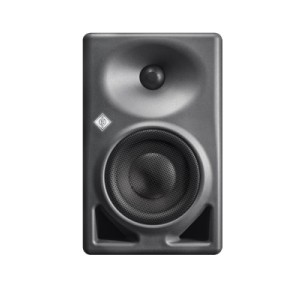

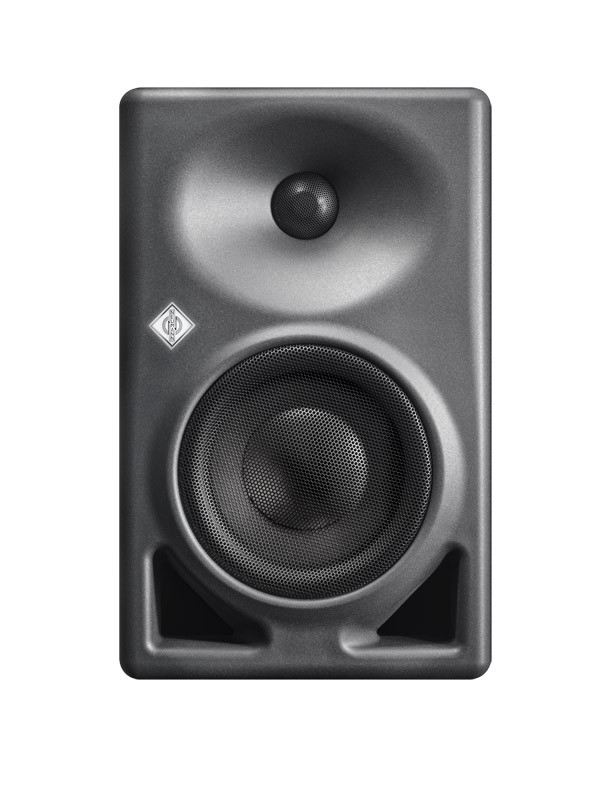

Neumann KH 120 II

Active Studio Monitor Speaker with DSP for automatic alignment

• Linear frequency (44 Hz - 21 kHz) and phase response
• Automatic alignment via DSP and MA 1 (optional)
• High power in compact format: 145 W woofer, 100 W tweeter
• Analog and S/PDIF input (optional: AES67 Audio over IP)
• Ideal for studios, post-production and mobile mixing

Neumann KH 120 II: compact, precise and intelligent studio monitor

The Neumann KH 120 II takes the legendary KH 120 studio monitor to a new level: deeper bass, greater sound pressure and improved resolution, all driven by a powerful internal DSP section. Designed for nearfield monitoring in professional or home studio environments, the KH 120 II is the ideal choice for precise mixes that translate perfectly to any listening system.

Advanced monitoring with linear response and perfect stereo imaging

With a linear frequency response from 44 Hz to 21 kHz (±3 dB) and an equally controlled phase response, the KH 120 II provides accurate temporal reproduction and amazing midrange transparency. The internal DSP enables linear phase crossovers, avoiding the distortions introduced by analog filters.

Smaller tolerances, absolute precision

Each unit is built to tolerances of less than ±0.5 dB, offering razor-sharp stereo imaging and tonal consistency even in surround or immersive configurations.

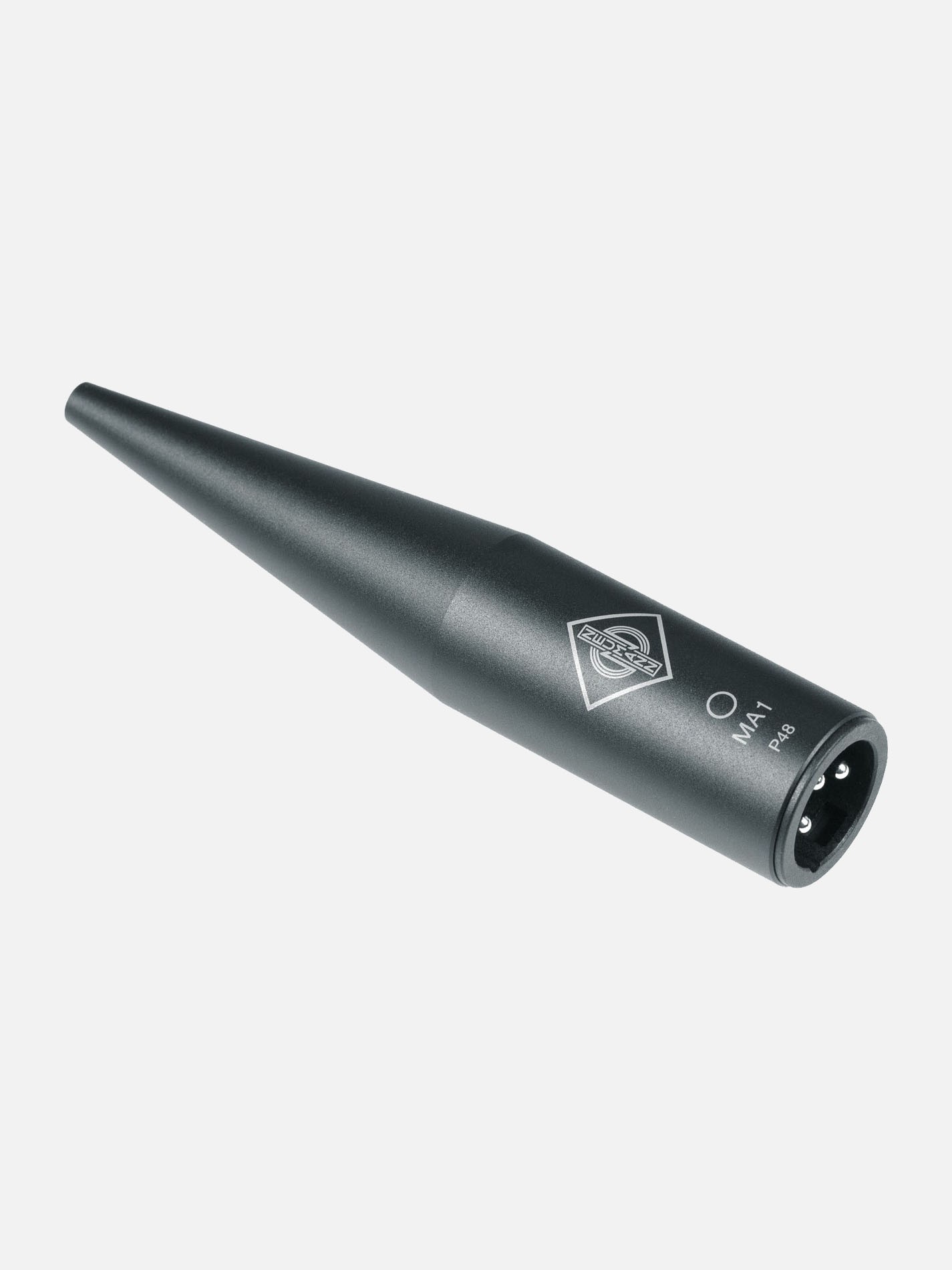

Automatic alignment with MA 1 and room adaptation

With the MA 1 automatic alignment algorithm (sold separately), the KH 120 II can be calibrated according to the acoustic characteristics of the room and listening position. Even in treated rooms, DSP optimization significantly improves reproduction accuracy.

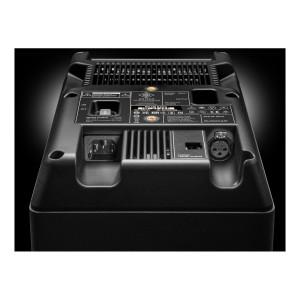

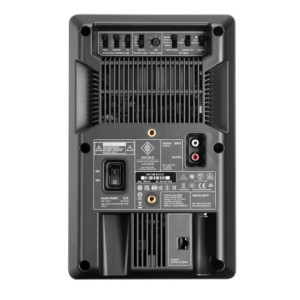

Versatile connectivity: analog, digital and network

The monitor includes analog and S/PDIF digital inputs. It is also available in an AES67 version, compatible with ST 2110, ST 2022-7, RAVENNA and DANTE® streams generated in AES67.

High power efficiency with top performance

New patented amplifier technology delivers up to 145 W to the woofer and 100 W to the tweeter, with low power consumption: 17 W in active standby and only 0.3 W in auto-save mode (can be turned off).

Compact and professional for every scenario

Designed for listening distances between 1 and 2 meters, the KH 120 II is perfect for home and project studios, editing suites, mobile productions, and immersive setups combined with other speakers in the KH line.

Technical Specifications.

• Frequency response: 44 Hz - 21 kHz (±3 dB)
• Phase response: 120 Hz - 16 kHz (±45°)
• Woofer: 5.25", 145 W - Tweeter: 1", 100 W
• Balanced analog + digital S/PDIF input
• AES67 model available with Audio over IP
• Supports MA 1 for automatic calibration
• Latency < 2.6 ms
• Power consumption: 17 W (idle), 0.3 W (standby)
• Available colors: anthracite and white
