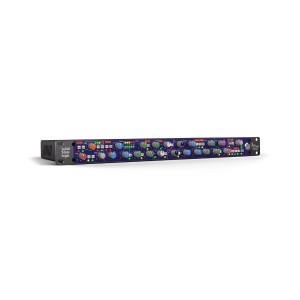

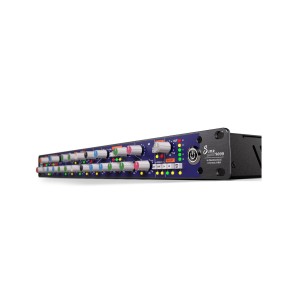

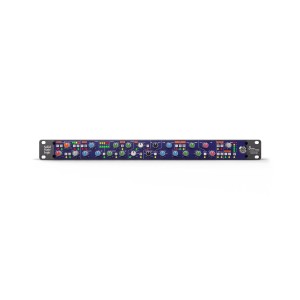

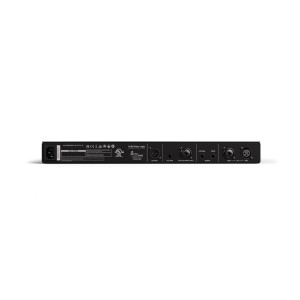

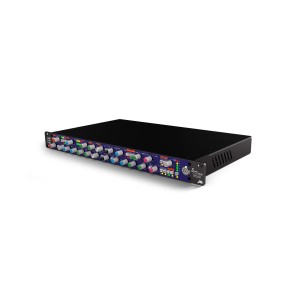

SSL Super 9000 SuperAnalogue Channel Strip

Channel strip 1 channel with compressor and equalizer SSL 9000 series

• SuperAnalogue™ technology for unparalleled punch and clarity
• Dual preamps: SuperAnalogue™ and VHD™ for character or transparency
• Advanced compression and gate with flexible routing options
• 4-band EQ with "Pink" (292) and "Black" (242) SSL circuits
• Ideal for professional studios and high-end productions

SSL Super 9000: the ultimate channel strip with SuperAnalogue™ technology

The SSL Super 9000 combines the best of SuperAnalogue™ technology in a powerful 1U analog channel strip. Based on the legendary SL 9000 J series and enhanced with the Duality console, it delivers exceptional punch, depth and sonic clarity. It is the reference choice for studios such as Abbey Road, Real World and Metropolis, and for artists such as Metallica, Jay-Z and Alicia Keys.

Two preamplifiers for maximum sonic control

SuperAnalogue™: absolute transparency

The SuperAnalogue™ preamp delivers linear frequency response and crystal clarity, ideal for clean, detailed recordings.

VHD™: variable harmonics for character and saturation

With the VHD™ circuit you can choose between tube warmth or transistor grit, ideal for coloring DAW returns and line sources.

Professional compression: total dynamic control

Based on the VCA THAT 2181A, the dynamics section includes compressor with Fast Attack, Peak Detect, expander/gate with variable hysteresis and HOLD control. Routing allows dynamics to be placed pre or post EQ.

Selectable SSL EQ: precision or musicality

292 "Pink Knob" - Musicality and versatility

G-Series circuit offers variable curves and smooth boosts, perfect for musical interventions.

242 "Black Knob" - Surgical EQ

The E-Series circuit provides precise control over every band, developed in collaboration with Sir George Martin. Advanced functions allow the manageable frequencies to be extended, and the EQ can be inserted into the dynamic sidechain.

Flexible routing and outboard integration

Super 9000 includes a balanced insert point and an external sidechain input. Routing allows repositioning of EQ, dynamics, and filters, optimizing each audio chain. Stereo link option allows simultaneous control over two units.

Technical specifications.

• 2 selectable preamps: SuperAnalogue™ and VHD™, +48V, Pad, Polarity
• Microphone impedance: 1.3 kΩ and 11 kΩ
• Dedicated LINE input with Input Flip function
• Compressor with VCA 2181A, Fast Attack, Peak Detect
• Gate/Expander with hold control and variable hysteresis
• 4-band EQ: selectable between 292 (G-Series) and 242 (E-Series)
• HPF 18 dB/oct and LPF 12 dB/oct
• Repositionable balanced insert
• Flexible routing of filters, dynamics and inserts
• External dynamic sidechain and stereo link
