32x32 AD/DA converter ADAT/MADI

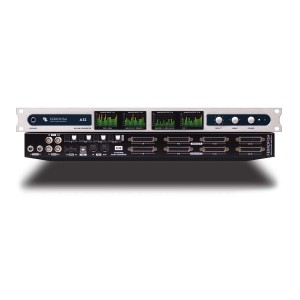

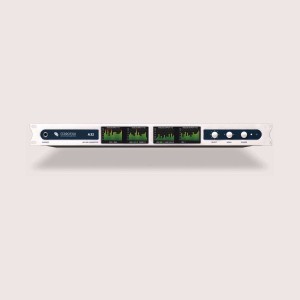

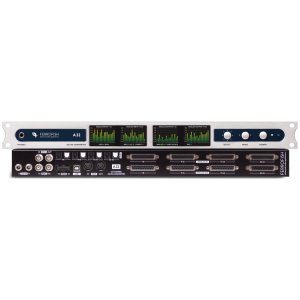

The A32 is packed with analog and digital interfaces. In addition to the 32×32 balanced studio-quality analog inputs and outputs up to 192kHz, the A32 offers both ADAT and MADI – probably the most widely used digital audio interfaces available. In addition to the optical MADI I/O, another coaxial MADI interface is also added. Different modes allow redundant operation of both interfaces: If one fails, the other one is activated automatically. Speaking of redundancy: If desired, two power supplies can be connected to the device. All power supplies and interfaces are permanently monitored: In the event of a failure, an error message is output on the TFT screens. Packed into a compact 1HU, the highly integrated converter is equipped with 32 x 32 balanced analog channels, brought out on 8 D-SUB connectors. They deliver studio levels up to +20dBu, individually adjustable in 1dB steps. The sophisticated design, using low latency Cirrus Logic converters, accompanied with a temperature-compensated clock and jitter reduction PLL, guarantees best crystal clear sound up to 192kHz. The A32 is not just a converter, but thanks to its flexibility, using a sophisticated routing matrix, it is also a digital format converter for integrating the MADI and ADAT equipment. Even operation of the A32 is done without any compromise, almost self explaining, as with all our products: A total of four TFT screens show the levels of all 64 channels, it can’t be done better. Controlling the unit also benefits from the screens: a sophisticated help system built into the device provides context-sensitive help for the selected function at all times. Control on the PC is of course also possible via USB, MIDI or MIDI over MADI. The headphone can be connected to any analog or digital input or output: ideal for control or monitoring. For complex tasks, a mix especially for the headphones can be created using all available channels, and stored in up to seven mix presets. The A32 Dante – a version with an additional 64 x 64 Dante channels – is also available. The flagship A32 brings our 10 years of experience in converter technology to the point, uncompromising to the last detail. All packed in only 1HU rack housing, of course fanless!

---

Specifications

MADI I/O (AES10) Optical (multimode) + Coaxial interface

• 64 channels @32kHz, 44.1kHz, 48kHz
• 32 channels @64kHz, 88.2kHz, 96kHz
• 32 channels @128kHz, 176.4kHz, 192kHz*

* both MADI ports work independently to achieve full 32+32 channel transmission Support of MIDI over MADI. Latency: 3 samples Redundancy: Automatic switching between optical <-> coax MADI when signal lost. Analog Inputs (AD) 4 x CS5368 (Cirrus Logic) 4 x DSub25 / Tascam

• Analog switches: +20dBu, +13dBu, +4dBu
• Digital gain: +20dBu … -8 dBu, 1dB steps

Latency

• @48kHz: 12/fs, 0.25ms,
• @96kHz: 9/fs, 0.09ms,
• @192kHz: 5/fs, 0.03ms

OpAmps RC4580 + OPA1664 Level indicator TFT screen, 28 levels Analog Outputs (DA) 4 x CS4365 (Cirrus Logic) 4 x DSub25 / Tascam

• Analog switches: +20dBu, +13dBu, +4dBu
• Digital gain: +20dBu … -8dBu, 1dB steps

Latency

• @48kHz: 7.8/fs, 0.16ms,
• @96kHz: 5.4/fs, 0.06ms,
• @192kHz: 6.6/fs, 0.03ms

OpAmps RC4580 + OPA1664 Level indicator TFT screen, 28 levels Headphones Out

• 1 x ¼” (6.3mm) TRS jack, stereo.
• Provides an independent stereo channel.
• Selectable mono/stereo source or one of 5 mixes of all inputs and outputs.
• Digitally controlled volume level.

ADAT I/O 4+4 optical interfaces (8 channels each with 48 kHz)

• 32 channels @32kHz, 44.1kHz, 48kHz
• 16 channels @64kHz, 88.2kHz, 96kHz
• n/a @128kHz, 176.4kHz, 192kHz

Latency: 3 samples SPDIF I/O ADAT 4 I/O can be reconfigured as S/PDIF I/O. The input includes a sample rate converter (performance of SRC: -128dB) The output follows the sample frequency of the A32. MIDI I/O

• 2 x DIN5 connector for remote control of the unit
• Conversion MIDI <> MIDI over MADI possible

Wordclock I/O

• BNC: 1 x input, 1 x output
• 75 Ohm Termination switchable for input

Power Supply 12V, 3A

• 2 x input jacks with screw lock for redundant power.
• Voltage supervision, warning message on screen when PSU input fails
• Internal resettable polyfuse
• 1 x power supply included

USB Port 1 x USB 2.0 for Remote/Updates Additional Features

• 192 kHz operation (S/MUX up to 192kHz).
• Individual delay-compensation of all analogue outputs.
• DSP Plugin-ready
• MIDI in/out plugs Headphone /submix output for easy control.
• MIDI over MADI Preset Management
• Extensive routing/mixing possibilities.
• Redundancy (MADI I/O, Dante I/O, Power Supplies).

Internal Clock

• Temperature compensated oscillator, with high accuracy.
• Initial accuracy: +/-1.5ppm
• Over temperature range: +/-2.5ppm
• Aging: +/-1ppm

PLL

• Digitally controlled PLL / Jitter reduction system
• Output jitter: 50ps … 100ps typ.

LCD Displays

• 4 x TFT Screens for the complete control of all analog I/O levels and all settings of the unit
• One Key Control provides an easy control of all functions.
• Multi language help pages guides available (No need to study the manual.)

Audio Core Processor

• Sharc DSP ADSP-21489 / 400MHz.
• Routing and processing of of all 128+128 audio channels.
• Mixing to headphone output.
• Independent mixing to selectable analog output pair.
• Calculation of DSP plugins.

Dimensions

• 1HU
• Depth: 27cm (10.6”) (including connectors)

Weight 4.1kg (9 lbs) Ambient temperature 41°F up to 113°F (+5°C up to +45°C)
