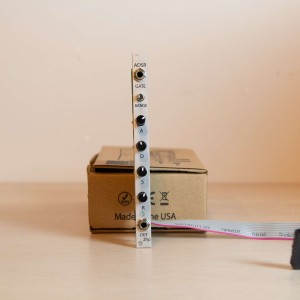

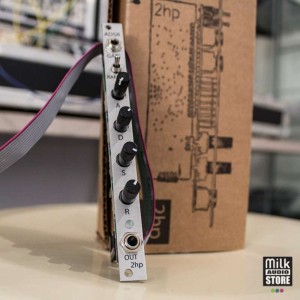

2HP ADSR (usato)

2HP ADSR (usato)

The 2HP ADSR module is a four stage linear envelope generator with two time ranges

The 2HP ADSR module is a four stage linear envelope generator with two time ranges. Each stage can be controlled independently allowing for the creation of complex, multi-segment envelopes. It is great for modulating filters, VCAs, and oscillators.

The envelope generator from 2HP offers four independent stages.

Thanks to a wide voltage output up to 10V, it is able to open up all VCAs or filters from other manufacturers.

A switch enables to select two different time ranges:

• Slow Range: 0.54ms – 5 sec per stage
• Fast Range: 5ms – 30 sec per stage

Specifiche Tecniche

Connectors
Gate input
Envelope output

Dimensions
3U Eurorack module, 2 HP wide, 47 mm in depth
Power consumption: 24 mA at +12 V and 7 mA at -12 V

Weight
0.1 kg
