Audiolinear Axis passive monitor controller (usato)

Audiolinear Axis (Usato)

Monitor controller passivo

The zero compromise passive desktop monitoring controller

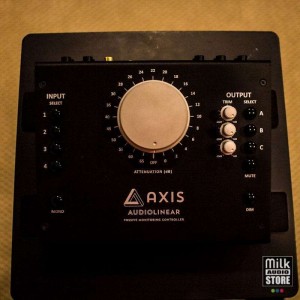

AXIS is a zero compromise, high-end desktop monitor controller. AXIS is entirely passive in its design, and offers a completely transparent signal path. There are no active electronics to add interference or distortion to your source.

Inherent Quality

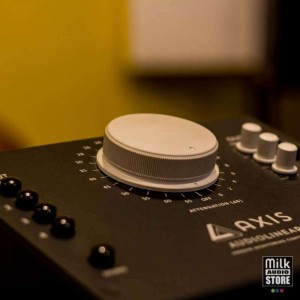

AXIS has a high-quality, Swiss-made, 24-position stepped output volume attenuator, with large 64mm Ø dial. The positions are ultra-smooth with 2dB steps from 0dB to -30dB and 5dB steps thereafter to -65dB. The attenuator uses high-quality 1% resistors throughout its network. Each output has a dedicated trim control on the top panel. The controls are all high-quality, smooth-turn potentiometers, made by ALPS. Each control has a range of -20dB to 0dB.

Connectivity

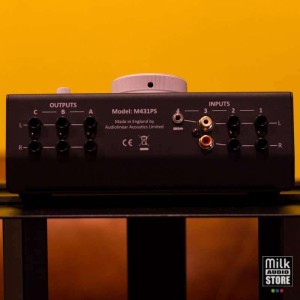

Two stereo inputs via 1/4" TRS jack sockets, for connection from your audio interface or other line-level equipment. Accepts both TS and TRS jack connections. One stereo input via RCA/Phono sockets, for connecting CD players or other unbalanced equipment. One stereo 3.5mm TRS mini-jack socket, for quick referencing to any device with a similar socket (e.g. Smartphones). Three stereo outputs via 1/4" TRS jack sockets.

---

Specifiche Tecniche

• Input 1: Neutrik Stereo 1/4" Jacks
• Input 2: Neutrik Stereo 1/4" Jacks
• Input 3: Switchcraft Stereo RCA/Phono sockets
• Input 4: Schurter Stereo 3.5mm Jack socket
• Output A: Neutrik Stereo 1/4" Jacks
• Output B: Neutrik Stereo 1/4" Jacks
• Output C: Neutrik Stereo 1/4" Jacks
• 24-Position ELMA Attenuation Switch
• ALPS Output Trim Controls
• Mono: Sums the selected inputs to mono
• Mute: Mutes both left and right channels
• Dim: Attenuates the output by 25dB
• Input and output switches are interlocking
• Can use multiple inputs/outputs simultaneously
• Hand-built in England
