Make Noise QPAS

Un filtro stereo a stato variabile con dei controlli sui picchi di risonanza che lo rendono potente e controllabile

Make Noise
SKU: 42855
  • In arrivo

€ 389,00 iva inclusa

  • Clock icon Contattaci per verificare i tempi di consegna
  • Shipping icon Spedizione gratuita

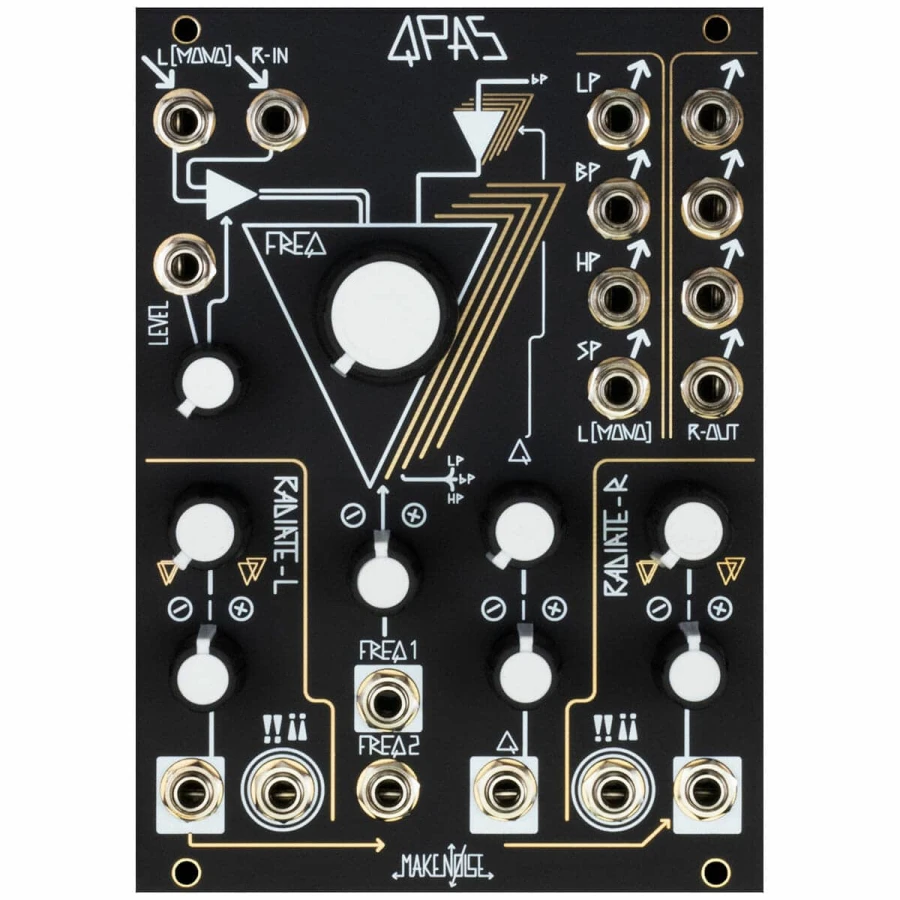

Make Noise QPAS

Un filtro stereo a stato variabile con dei controlli sui picchi di risonanza che lo rendono potente e controllabile

The Quad Peak Animation System combines the auditory enveloping of stereo spaced peaks with the animation of two or more peaks in a single channel dancing around each other or engaging in primitive vocalizations. QPAS is Quad Core, containing four identical state variable filter cores with a control system powerful enough to guide them in stereo multi-peak operation, but simple enough to encourage system integration rather than domination.

Features

  • Quad Core Stereo Analog
  • Multi-Peak with clean resonance
  • Fast response encourages deep FM
  • Radiate spaces stereo image and animates associated channel
  • High Q settings are under damped, excitable and ring by gate or trigger
  • 2 !! modulation inputs aid patch exploration
  • Stereo VCA, pre-filter with gain
  • Mono to Stereo, Stereo to Mono, Mono to Mono and Stereo to Stereo operations
  • Smile Pass filter response unique to QPAS
  • Low Pass, Band Pass, High Pass and Smile Pass outputs simultaneously available

Specifications

  • Width: 18hp
  • Max Depth: 30mm
  • Power: 166mA @ +12V 190mA @ -12V

Depth

30 mm

Width

18 hp
