Chandler Limited TG Microphone Type L

Wide-diaphragm FET condenser microphone with Dual Tone system

• Design developed in collaboration with Abbey Road Studios
• Dual Tone system with two distinct voicings: A and B
• Custom wide-diaphragm capsule with EMI TG circuitry
• Versatile sound response for a wide range of sources

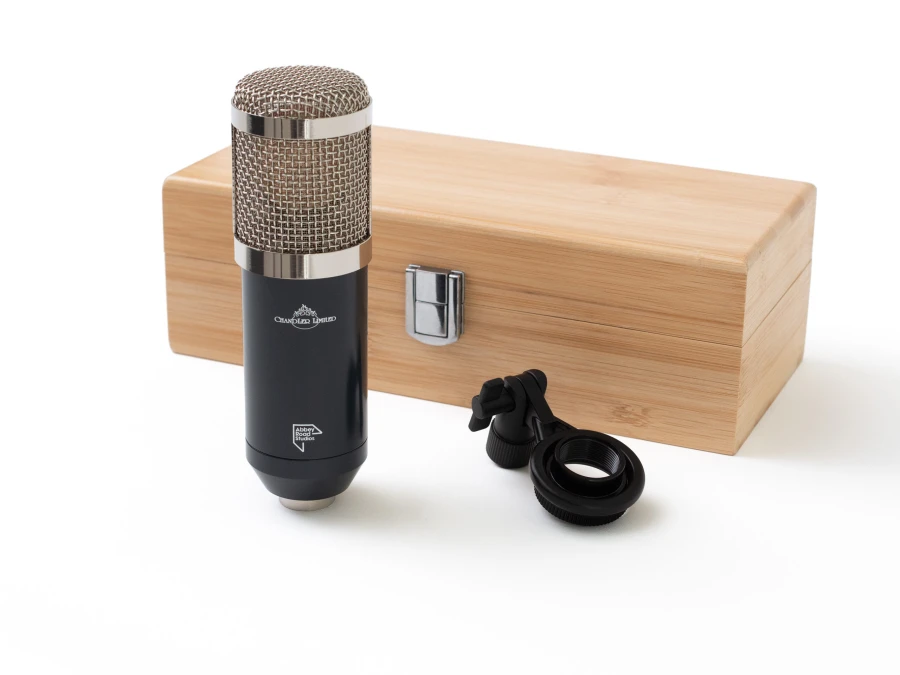

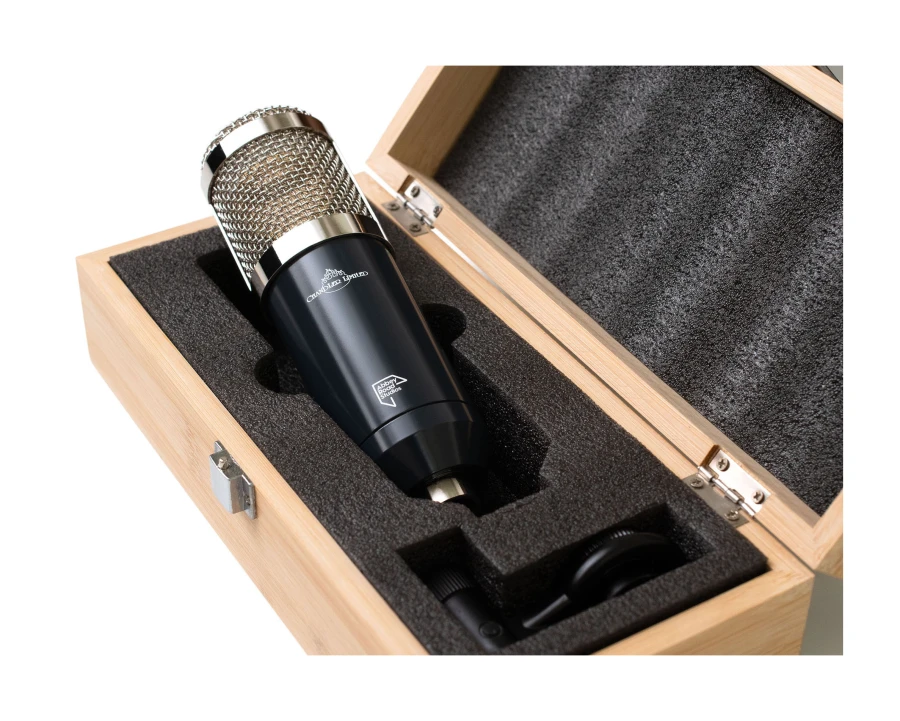

• Includes articulated stand and bamboo box

Chandler Limited TG Microphone Type L: sonic versatility in the studio

The Chandler Limited TG Microphone Type L is a wide-diaphragm condenser microphone with phantom power and cardioid polar pattern. A direct evolution of the famous TG Microphone, the Type L inherits the main circuitry, custom capsule and the famous Dual Tone system, but introduces its own unique and distinctive sonic character.

Dual Tone System: two microphones in one

The Dual Tone system offers two operating modes: the "A" mode, with a mid-range, harmonically rich sound response, and the "B" mode, which is more transparent and similar to a ribbon microphone. This makes the TG Type L extremely flexible and suitable for multiple recording contexts.

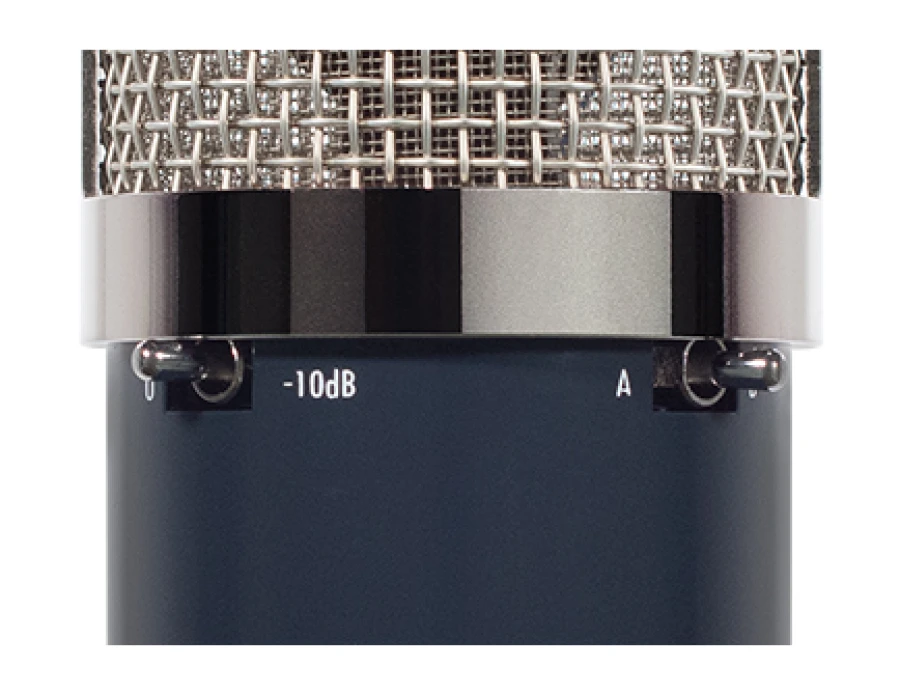

"B" mode and -10 dB pad: perfect for high sound pressures

By activating the -10 dB pad, both modes also become suitable for high SPL sources. The "B" + PAD combination is the ideal configuration for handling particularly intense sounds, such as guitar amps or close percussive instruments.

Ideal for professional studios and versatile applications

The TG Microphone Type L delivers a wide, three-dimensional sound that exceeds expectations for a solid-state microphone. It is intended as a "working" microphone for professional recording studios, and can be used as an alternative to the classic C12, C414, FET47, U67, and U87, or as a one-size-fits-all solution in contexts where dynamics and ribbon would be used in combination.

Technical Specifications.

• Microphone type: wide-diaphragm condenser (LDC)
• Transducer type: Gold, custom specifications
• Circuit: EMI TG, solid-state, FET
• Dual Tone System: Voicings A/B
• Polar Pattern: Cardioid
• Pad: -10 dB
• Output Impedance: 200Ω
• Power supply: Phantom 48V
• Stand: Articulated (included)
• Case: Bamboo box (included)
