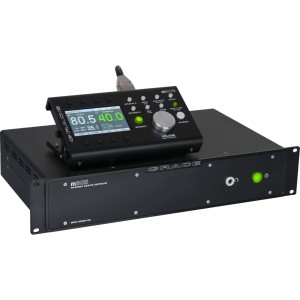

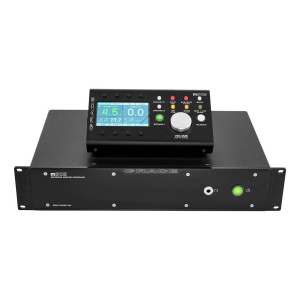

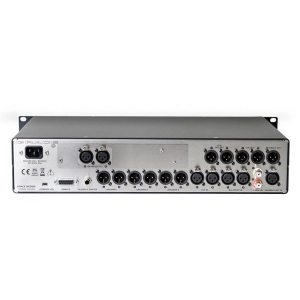

Grace Design m905 - Controller Monitoria Analogico e Digitale Stereo (con remote) BK

Stereo Monitor Controller with Remote and DAC Analog and Digital Inputs

• High-end stereo monitor control with remote controller included
• Balanced analog and digital inputs (AES3, S/PDIF, TOSLINK, USB, ADAT)
• Master-level DAC with DSD128 and asynchronous USB support
• Graphic LCD display with hybrid hardware/software control
• Exceptional audio accuracy: low distortion, high dynamic range
• Built-in talkback function and SPL calibration

Grace Design m905: Professional Monitor Controller with Advanced DAC

The Grace Design m905 represents excellence in stereo audio monitoring for recording and mastering studios. In this full version with built-in DAC and remote control, it offers precise control and flawless sound reproduction, thanks to top-notch analog and digital circuitry.

Ergonomic remote control and advanced user interface

The system consists of a main unit in 2U rack format and a sleek remote controller with color LCD display. Dedicated physical controls and a large rotary encoder provide an intuitive user experience, while the graphical user interface allows immediate access to all features.

DAC and mastering-level digital connectivity

The built-in DAC supports up to 24-bit/192kHz via asynchronous USB, AES3, S/PDIF, TOSLINK and ADAT. The s-Lock PLL technology ensures ultra-low jitter clock regeneration, providing absolute sonic transparency. Also compatible with DSD128 via DoP.

Advanced features for professional studios

Talkback and SPL calibration

The remote controller includes a microphone for talkback and a built-in SPL meter with multiple measurement modes and A/C weightings. Perfect for professional environments that require precise communication and control.

Routing and total customization

The m905 allows full customization of inputs and outputs, level offset adjustments, volume presets, dedicated mono/sub/mute modes, and more. It supports up to three stereo speaker pairs and subwoofers.

Technical Specifications.

Audio Performance

• THD+N @+20dBu: <0.0008%
• Dynamic range (A-weighted): 121 dB
• Frequency response (balanced inputs): 3Hz - 1.25MHz
• Cross-talk at 1kHz: <100dB
• Maximum output: +26dBu
• Balanced input impedance: 88k Ohm

Inputs and Outputs

• Analog inputs: balanced, unbalanced, CUE, phono (optional)
• Digital inputs: 2x AES3, 1x S/PDIF, 1x TOSLINK, ADAT, USB
• DSD128 support via DoP
• 3 pairs of speaker outputs, configurable SUB outputs

General Features

• Volume control in 0.5dB steps
• Dedicated mono, dim, mute and sub mute functions
• Built-in mic talkback and SPL meter
• Chassis dimensions: 3.5" x 10.5" x 17" | Weight: 7.8 lbs
• RCU dimensions: 8.9" x 5.1" x 2.2" | Weight: 2.2 lbs
• Universal power supply 100-240V

Please note: Photos shown may not represent exactly the same product configuration as described.
