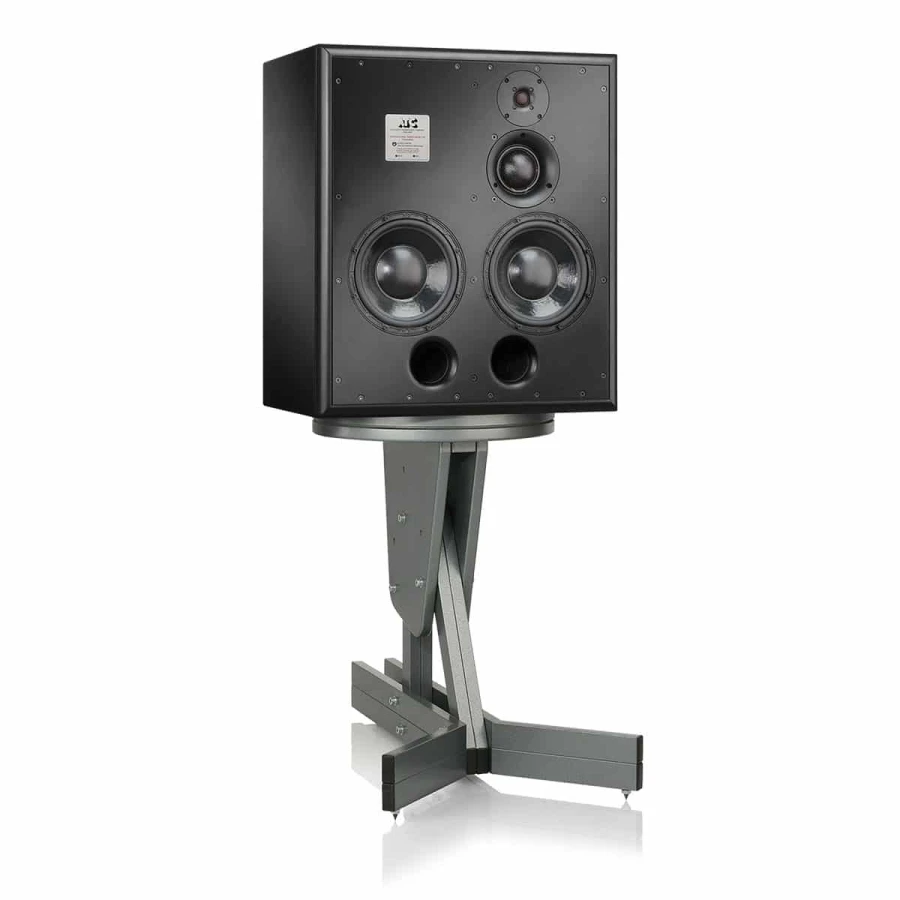

ATC SCM110 ASL

Studio Main Monitor 3 vie attivo

ATC
SKU: 18482
  • Disponibile

21.264,60 iva inclusa

  • Clock icon Normalmente spedito in 3 settimane
  • Shipping icon Spedizione gratuita
Garanzia estesa a 6 anni

ATC SCM110 ASL

Studio Main Monitor 3 vie attivo

SCM110ASL PRO è la prima in ordine di dimensioni della serie SCM ad avere una configurazione gTwin LFh, incorpora due woofer super linear bass da 234mm ed un mid driver gSuper Domeh da 75mm. LfSCM110ASL PRO si propone come uno studio main monitor in grado di fornire SPL fino a 115 db/1.

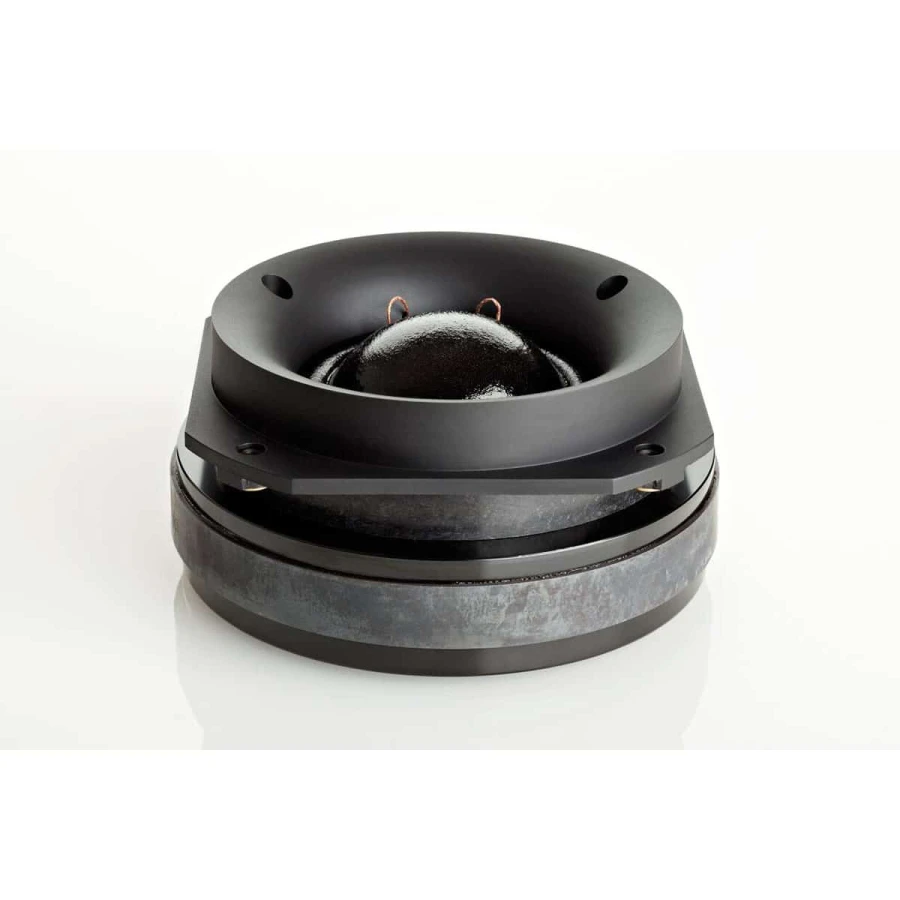

  • 25mm soft dome tweeter.
  • Twin full “SL” spec 9“/234mm bass driver.
  • ATC 75mm “Super Dome” mid driver.
  • On board ATC grounded plane 350W Tri-amplifier.
  • LF contour control.
  • Clip indication.
Prezzo la coppia

Specifiche

Drivers: HF 1″/25mm, Mid 3″/75mm, LF 2x 9″/234mm Amplitude Linearity (±2dB): 50Hz-17kHz Cut-off Frequencies (-6dB, free-standing): 30Hz, 22kHz Horizontal Dispersion: ±80°, Coherent Vertical Dispersion: ±10°, Coherent Max. Continuous SPL (1 metre): 115dB Crossover Frequencies: 380Hz, 3.5kHz Input Connectors: Male XLR Input Sensitivity: 1V Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer) Input Impedance: Balanced > 10kΩ Amplifier Output: Bass 200W, Mid 100W, High 50W Filters: Even Order Critically Damped Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection Front Panel Indicators: Power On indicator, Gain Reduction warning LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer) Dimensions (HxWxD): 715 x 625 x 420mm (28.2˝ x 24.5˝ x 16.5˝) Depth with amplifier at rear adds 3˝ Weight: 73kg / 160.6lbs

Speaker type

Active
