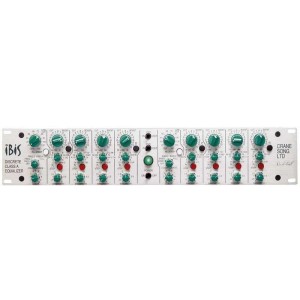

Crane Song Ibis

• Input: Floating, balanced. Maximum input is +25 dBm. The connectors are XLR.
• Output: Floating, balanced. Maximum output is +25 dBm. The connectors are XLR.
• Color control
• 4 Bands and lowcut per channel
• Stereo / Dual mono

Crane Song Ibis

Equalizzatore parametrico 4 bande con controllo "color"

• Studio di registrazione
• Postproduzione Audio / Video

Specifiche Tecniche

• Input: Floating, balanced. Maximum input is +25 dBm. The connectors are XLR.
• Output: Floating, balanced. Maximum output is +25 dBm. The connectors are XLR.
• Input and Output Connections: Pin 2 is Sig + , Pin 3 is Sig- , Pin 1 is GND
• Power: 100, 120, 230,240 volt; 50/60 Hz; 55 watts MDL .6A Fuse for 100V and 120V MDL .3A Fuse for 230V and 240V
• Noise: Measured with the eq set flat and the bandwidth controls at max -85dbm
• Clipping: +25 dbm
• Distortion: With the eq set flat measured at +20 dbm 0.001%
• Pilot Lamp: # 327
• Shipping Weight: 19 lbs. (8.6 kg)
• Depth Behind Panel: 12.5 inches (31.75 cm) plus cabling
• Panel Height: 2 rack spaces
• Frequencies: There are 24 frequencies per band for a total of 96 frequencies with the bands overlapping. They are stepped on both the mastering and standard units
• Boost-Cut: The standard equalizer has a range to plus or minus 12 db on each band. The Mastering version has a range of plus or minus 6 db This is stepped 0.5 db steps to 5 db and a 1 db step to 6db on the mastering version.
• Bandwidth: Bandwidth in octaves is measured at full boost. The maximum is 4 octaves and a minimum is 0.2 octaves. This is a Q range from 0.15 to 17 On the mastering unit this is stepped with 12 steps.
