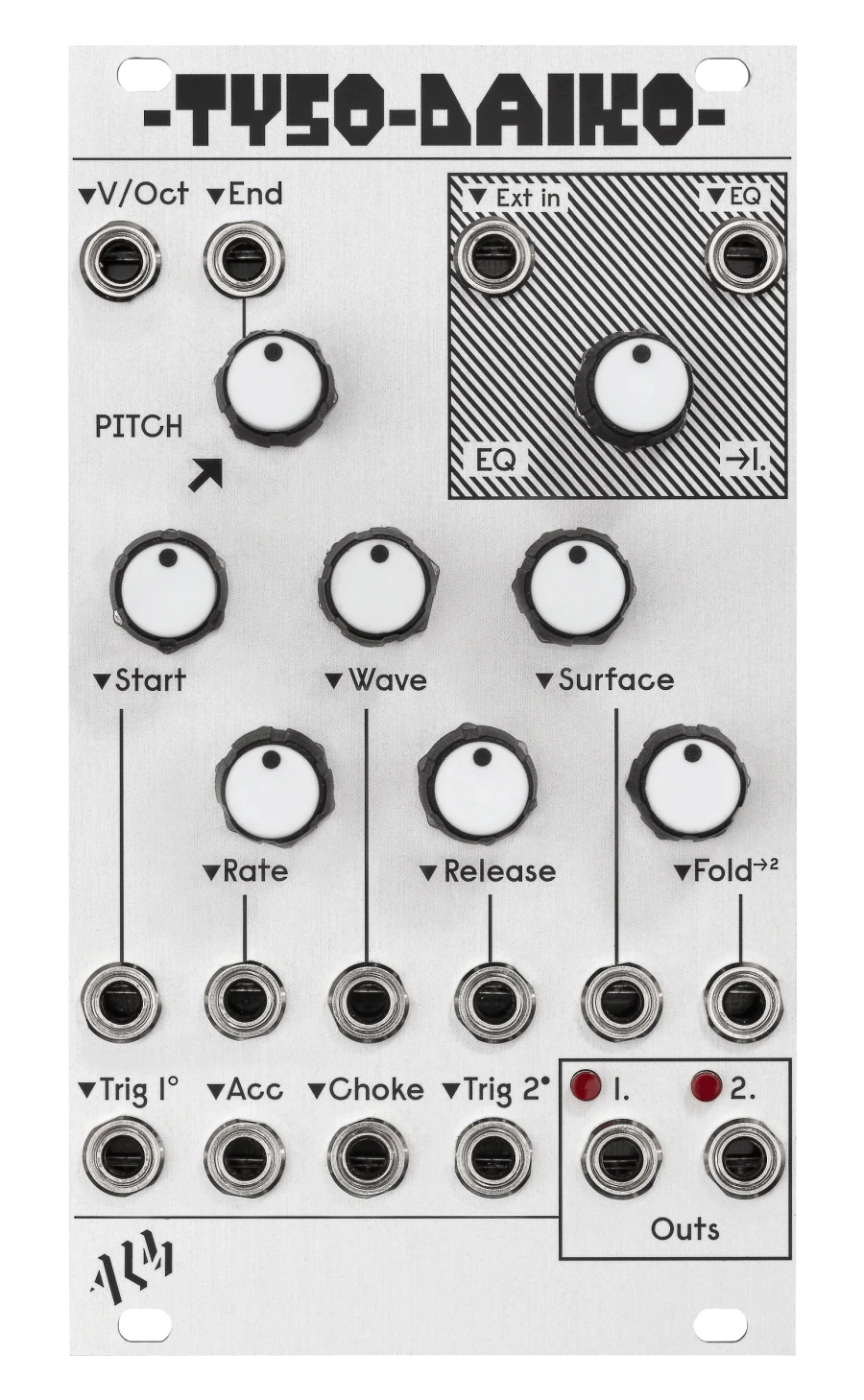

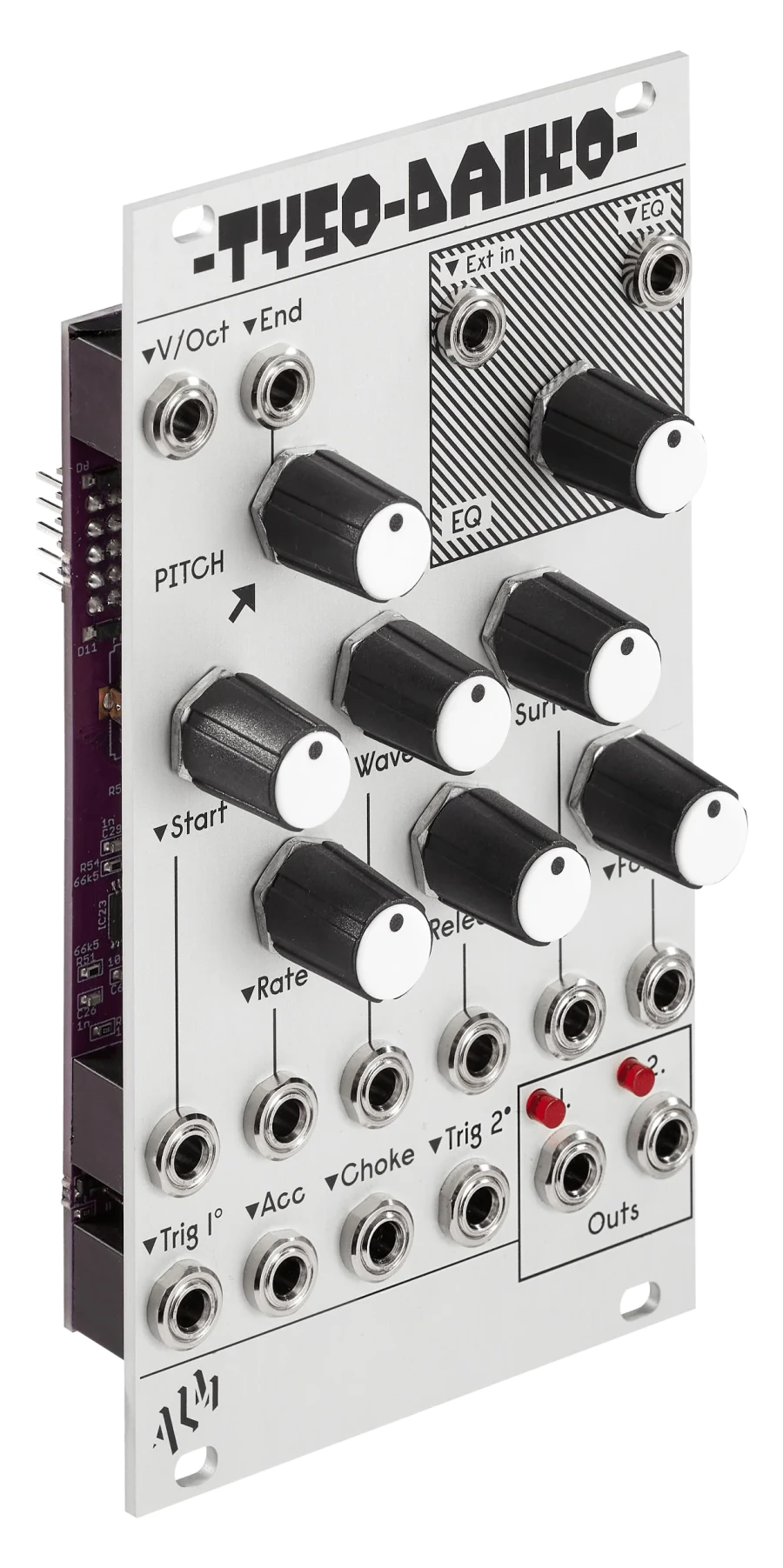

ALM Busy Circuits Tyso Daiko

Dual 12-bit digital drum voice with analog EQ output

• Dual 12-bit digital wavetable drum voices with separate triggers and outputs
• First channel via a voltage-controlled analog tilt EQ
• Second voice routed through a digital wavefolder, ranging from complex timbres to noise
• Oscillator with frequency sweep, 11 morphing wavetables, self-FM, and 1V/oct input
• Independent accent and choke inputs on the first voice
• Surface control for punch, click, or a softer attack
• Voltage control of all parameters, successor to the famous Dinky

ALM Busy Circuits Tyso Daiko is a dual-voice, 12-bit digital wavetable drum module with full voltage control and an output path featuring analog EQ. It carries on the legacy of the Dinky, one of ALM’s most beloved percussion modules, and preserves its playful spirit while adding much finer control, new features, and new wavetables. The result is an expressive and versatile drum module, capable of ranging from deep kicks and resonant toms to metallic and noisy percussion sounds.

Two wavetable drum voices with different outputs and character

The two voices are activated and routed independently, but they share pitch, envelope, and other parameters of the wavetable oscillator with frequency sweep. What changes is the output processing, and this is precisely where the Daiko finds its dual personality.

Voltage-Controlled Analog Tilt EQ

The first voice passes through a fully analog, voltage-controlled tilt EQ, which emphasizes either the high or low frequencies with a single adjustment. You can shift the balance of the sound from the body to the attack, or modulate it over time for constantly shifting grooves. The external mix input also lets you route another source from your system through the same tilt EQ.

Digital wavefolder, from timbre to noise

The second channel passes through a digital wavefolder that progressively adds timbral complexity, eventually reaching noise. It’s the fastest way to transition from a clean hit to snare, hi-hat, and industrial percussion—all from the same source.

12-bit wavetable oscillator with 11 morphing waveforms

At the heart of the Tyso Daiko is an oscillator with frequency sweep, a 1V/oct input for pitch tracking, 11 continuously morphing wavetables, and the ability for self-FM. The attack and release envelopes shape the dynamics of the hit, while the 12-bit resolution delivers that digital grit characteristic of the roughest drum machines.

Accent, Choke, and Surface Control

Both voices respond independently to the accent input, and the first voice can be cut off via the choke input—useful for simulating open and closed hi-hats or for creating tighter patterns. The Surface control precisely adjusts additional transients: more punch, a pronounced click, or a slow, soft attack.

ALM Eurorack Drum Module with Full Voltage Control

Every parameter of the Daiko is voltage-controllable, including the V/oct input. This makes it an ideal instrument to patch with sequencers, LFOs, and random generators, allowing you to achieve an extremely wide range of sounds and rhythms that change with every beat. A module designed for those who want to play percussion at home, not just program it.

Technical Specifications

• Brand: ALM Busy Circuits
• Model: Tyso Daiko
• Type: dual-voice wavetable digital drum module for Eurorack
• Resolution: 12-bit
• Voices: 2, with shared parameters and separate outputs
• Voice 1 output: voltage-controlled analog tilt EQ
• Voice 2 output: digital wavefolder
• Oscillator: frequency sweep, 11 morphing wavetables, self-FM
• 1V/oct input for pitch tracking
• Envelopes: attack and release
• Inputs: dual trigger, accent, choke
• Surface control for punch, click, or reduced attack
• External mix input via tilt EQ
• Voltage control of all parameters
• Power supply: +12 V 70 mA, -12 V 35 mA
• Dimensions: 14 HP
• Depth: 32 mm, suitable for skiff enclosures
• Reverse polarity protection
• Made in England
