ATC P1 Pro

Dual-Mono Power Amplifier

SKU: 18416

€ 3.020,00 Ex VAT

For European customers, select your country to view the correct price including VAT.

Available
Normally shipped in 8-10 working days

Add

Warranty extended to 6 anni

Let's stay in touchDiscover our opening hours

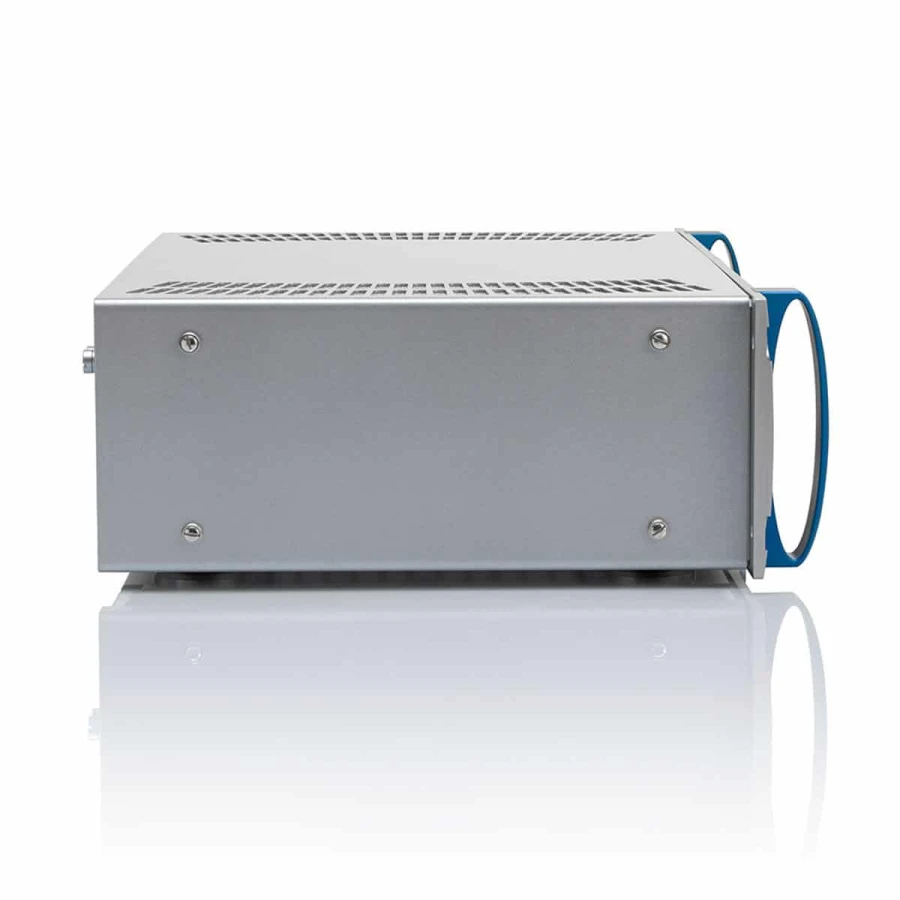

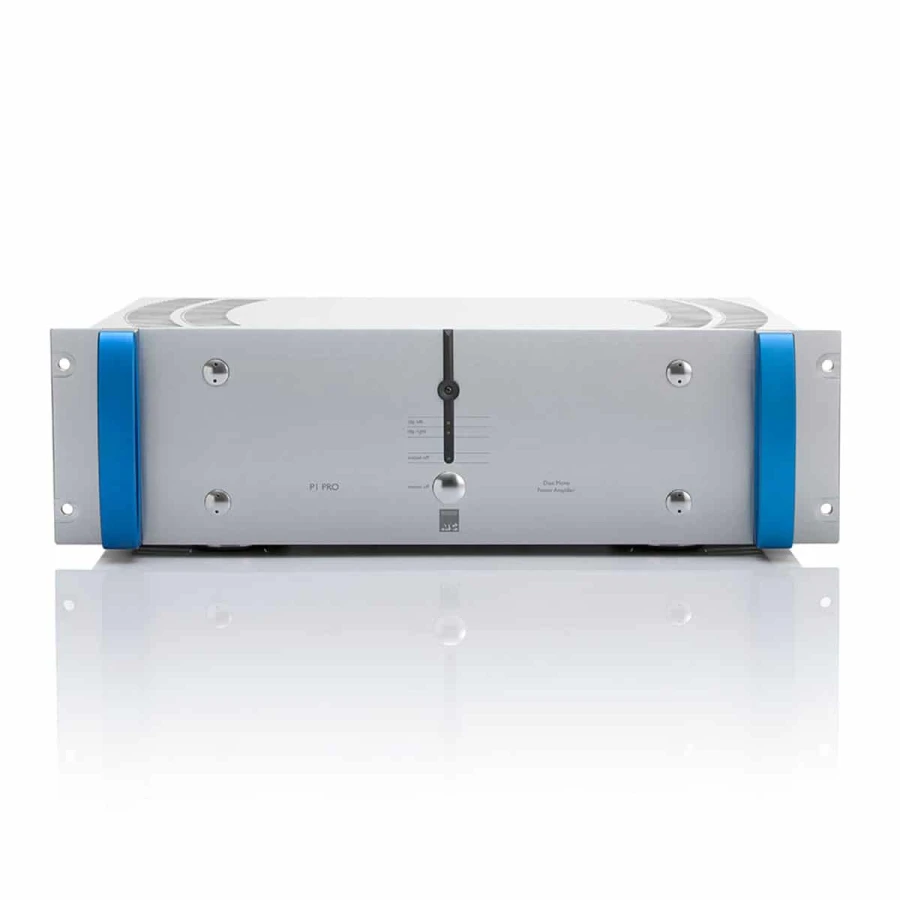

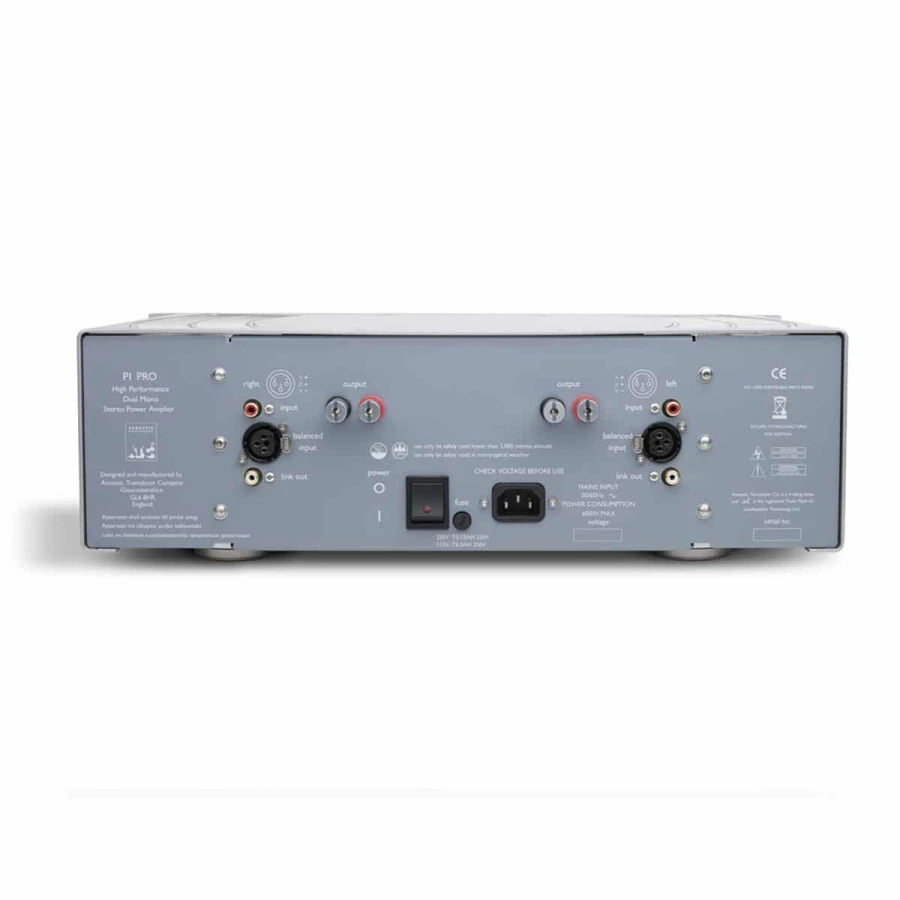

ATC P1 Pro

Dual-Mono Power Amplifier

True dual-mono design delivers full power simultaneously from both channels, with minimal crosstalk
Grounded source class A/B circuit topology as found in ATC’s renowned active loudspeakers.
Ultra wide bandwidth, low distortion and high dynamic range ensure tonal accuracy and perfectly timed transients.
No compromise, high performance power supply and large heatsinks guarantee outstanding stability and long term reliability.
A perfect match for any passive studio reference monitor.
19” Rack mountable convection cooled chassis

Output Power into 8 Ω: 150W (8 Ω, 1kHz, continuous. avg., both channels driven)
Input Sensitivity: 2V RMS (ref. 150W out)
Input Impedance: 10kΩ/leg
Frequency Response: <2Hz – >400kHz (-3dB)
Signal to noise ratio: >115dB (IEC ‘A’)
Crosstalk: >100dB (10Hz – 20kHz)
THD: >0.002%/-95dB (8 Ω, 1kHz, -1dB below full Power)
Damping Factor: >400 (8 Ω)
Dimensions (HxWxD): 141.1×482.6×365.6mm (3U tall with feet removed)
Weight: 20kg/44lbs
