Clatters Machines Pocket Garden Listener

Portable random control message generator from biometric signals

• Compact, desktop version of the eurorack Garden Listener module
• Generates MIDI notes and CV signals from conductivity variations
• Single-knob menu control for sensitivity, scale, MIDI channel and brightness
• MIDI outputs via USB and TRS simultaneously
• Trigger, gate and CV outputs for control of modular and semi-modular synths
• Power supply via USB
• Cables, adapters and calibration tools included

MIDI and CV control from biometric signals

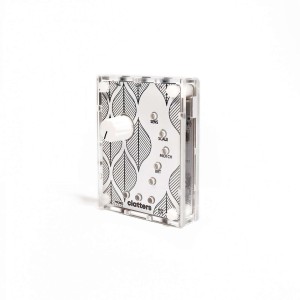

The Clatters Machines Pocket Garden Listener is a portable generator of random control messages that exploits conductivity variations on the surface of living things. This compact device transforms these signals into MIDI notes (C-1 to C8) and CV signals (0-5V), offering a unique experience for organic and interactive sound creation.

Intuitive interface and customizable parameters

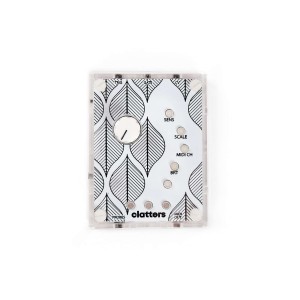

Single-knob menu

With the single-knob control, you can configure:

• The sensitivity of the probes
• The musical scale (chromatic, major, minor, Indian and Arabic)
• The MIDI channel (1-16)
• The brightness of the LEDs

Versatile connections for studio and live performance

MIDI data is transmitted via both USB and TRS, allowing control of DAW plugins, hardware synths and eurorack modules. Triggers and 5V gates trigger with each note generated, while MIDI notes are converted to variable voltages (0-5V, 1V/oct) at CV output.

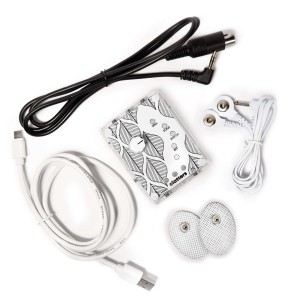

Accessories included in the package

• White 3.5mm probes
• Reusable adhesive electrodes
• MIDI-TRS Type A adapter (1m)
• USB cable (micro B - type A)
• Torx-7 wrench for calibration

Technical Specifications.

• Dimensions: 75.9mm x 58.5mm x 27.5mm
• Current consumption: 36mA, 5V
• Materials: 1.6mm white FR4 front panel and 2mm clear acrylic case
• Factory calibrated for 1V/oct output
