PMC 6-2 XBD

Active 3-way midfield reference monitor with ATL™ bass loading and sub extension

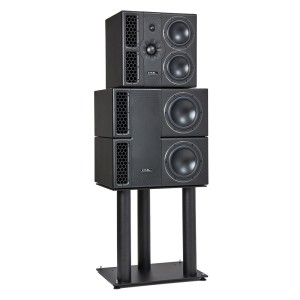

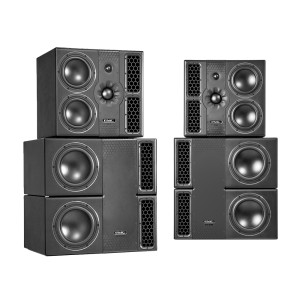

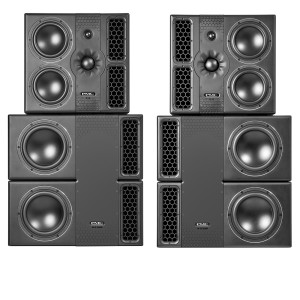

Adding a PMC8-2 SUB unit to a PMC6-2 monitor easily reconfigures the system into PMC's renowned XBD twin-cabinet format. This configuration combines the unparalleled clarity and resolution of the PMC6-2 with a perfectly integrated active sub, creating a full-range system ideal for high-end music production.

In the case of the PMC6-2, the XBD mode reinforces the low-end output of the LF drivers of the main speaker, significantly increasing headroom and extending the response down to 25 Hz, for authoritative and effortless listening at all times.

• XBD system: 3-way active, twin-cabinet, mid-field with ATL™ loading.
• Frequency response (system): 25 Hz - 25 kHz (-3 dB @1 m, full space, on-axis).
• Class-D amplification: HF 400 W, MF 400 W, LF 2 × 400 W; SUB (XBD) 2 × 400 W.
• I/O: analog/digital input AES3 (16/24 bit, 18-192 kHz); digital output "through" AES3 24 bit @ 96 kHz.
• Network control: SoundAlign™ interface for EQ and settings of individual speakers or groups.
• Advanced DSP: crossover, driver protection, EQ, delay and polarity options.
• Accessories: dedicated 19" stands (optional).

Simple configuration and control

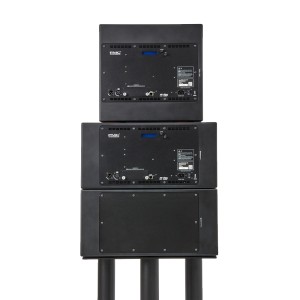

To set up the PMC6-2 XBD system, connect the input directly to the PMC6-2 and add an AES3 cable to bring the "through" output of the main monitor to the PMC8-2 SUB. The two cabinets can be connected to a LAN or directly to each other via the network ports. By selecting the dedicated "XBD" mode, the DSP transparently combines both units into one larger scale monitor. Detailed configuration is available from the rear controls or via browser with SoundAlign™, where, when connected, the speakers appear as a single PMC6-2 XBD unit.

DSP Features of the PMC6-2

• Level Trim: ±10 dB
• High-pass filter: 20-200 Hz, 12 dB/Oct
• Delay: 0-30 ms
• Phase: normal/inverted
• LF & HF shelving filters: 20 Hz - 20 kHz, ±10 dB, Q 0.707
• Parametric EQ: 5 bands, 20 Hz - 20 kHz, ±10 dB
• User presets: 3 + factory default
• Latency: 2.4 ms

Power supply and consumption (PMC6-2)

• Power supply: 100-240 VAC auto-switching, 50-60 Hz (IEC C14)
• Consumption (idle): 50 W
• Consumption (max): 1500 W
• Dimensions (H × W × D): 400 × 430 × 372 mm
• Weight: 21.3 kg each

Specifications PMC 8-2 SUB

• Type: Active subwoofer with dual 8" woofers and ATL™ loading
• Driver: LF PMC 200 mm (8") "studio 8"
• Effective ATL™ length: 3 m (9.8 ft)
• Frequency response: 25 Hz - 500 Hz (-3 dB @1 m, full space, on-axis)
• Sensitivity:+4 dBu input = 98 dB SPL @ 1 m
• Max continuous SPL: 115 dB @ 1 m
• Max peak SPL: 121 dB @ 1 m
• Inputs (XLR switchable): Analog / Digital AES3
  • Analog: max input +20 / +24 dBu (selectable), impedance 22 kΩ
  • Digital: 16/24 bit AES3 signal (L, R or L+R), 18-192 kHz, impedance 110 Ω
• Expansion slot: for future connectivity upgrades
• Output: XLR digital AES3 (24 bit fixed @ 96 kHz)
• Network: RJ45 for PMC SoundAlign web interface
• DSP functions:
  • Level Trim: ±10 dB
  • High-pass / Low-pass filters: 20-200 Hz, 12 dB/Oct
  • Delay: 0-30 ms
  • Phase: normal / inverted
  • LF & HF shelving filters: 20 Hz - 20 kHz, ±10 dB, Q 0.707
  • Parametric EQ: 5 bands, 20 Hz - 20 kHz, ±10 dB
  • User presets: 3 + factory default
  • Latency: 2.4 ms
• Amplification: 300 W RMS
• Power supply: 100-240 VAC auto-switching, 50-60 Hz (IEC C14)
• Power consumption: idle 25 W; max. 300 W
• Dimensions (H × W × D): 534 × 551 × 440 mm
• Weight: 37.5 kg each
