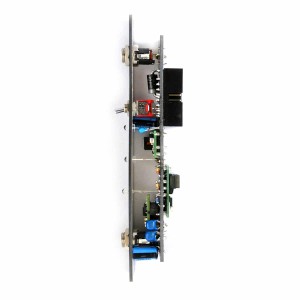

4MS Row Power 40

Power distributor – PSU not included

SKU: 18143
  • Out of Stock

130,00 Ex VAT

For European customers, select your country to view the correct price including VAT.

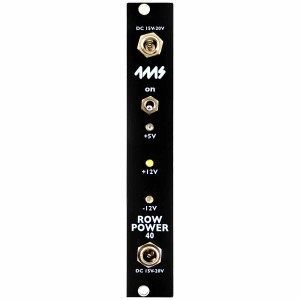

The RowPower40 can be powered with any laptop-style external power supply with a 2.1mm barrel plug, providing an output voltage of 15-20V DC, minimum 40W of power. The power supply is not included! At the front panel we find two identical 2.1mm barrel sockets: the power supply is connected to one of them, the other one can pass the voltage to another RowPower module by using an separately available “barrel power jumper cable”. Both sockets’ functions are interchangeable so it doesn’t matter which is used as input. On the back there are two 16-prong pin headers where you connect maximum two passive power distributions (available separately). flexible bus board from 4ms can be connected directly, rigid bus boards have to be connected with a 16-pin flat ribbon cable. Maximum current provided by the RowPower 40: 1.5A @ +12V, 1.25A @ -12V and 1.5A @ +5V. All voltages are displayed with LEDs. An on/off switch is available. Not supplied with the Row Power: the external power supply, the “jumper cable” or the bus boards. Those have to be purchased separately!


28 mm


4 hp
