APOGEE 2x6 SE Analog I/O + 8x8 Optical + AES I/O

Expansion module for Apogee Symphony - 2 analog IN and 6 analog Out + AES/Optical I/O

Apogee Digital
SKU: 18258

1.557,00 Ex VAT

For European customers, select your country to view the correct price including VAT.

  • Out of Stock

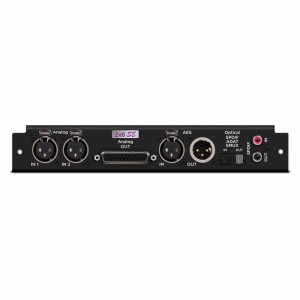

Apogee 2x6 SE Analog I/O + 8x8 Optical + AES I/O

Expansion module for Apogee Symphony - 2 analog IN and 6 analog Out + AES/Optical I/O

Highlights:
  • Highest Quality Apogee AD/DA converter
  • A/D = 124dB (A) dynamic range, -116dB THD+N
  • D/A = 131dB (A) dynamic range, -118dB THD+N
  • Available in Thunderbolt or HD configurations
  • Also available as expansion module for existing Symphony I/O Mk II
 Inputs
  • Analog IN: 2 balanced inputs on 2 female XLR connectors
  • AES IN: Stereo input on 1 female XLR connector
  • Optical IN: Supports ADAT, SMUX & S/PDIF
    • ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
    • SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
    • S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
  • S/PDIF Coax IN: 2 channels, up to 192 kHz on 1 RCA connector
Outputs
  • Analog OUT: 6 balanced outputs on 1 DSUB 25-pin connector
  • AES OUT: Stereo output on 1 male XLR connector
  • Optical OUT: Supports ADAT, SMUX & S/PDIF
    • ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
    • SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
    • S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
  • S/PDIF Coax OUT: 2 channels, up to 192 kHz on 1 RCA connector
  • Full calibration of analog inputs and outputs via front panel or Apogee Control software

Analog Inputs

2

Analog Outputs

6

DSP

No

Simultaneous I/O

8
