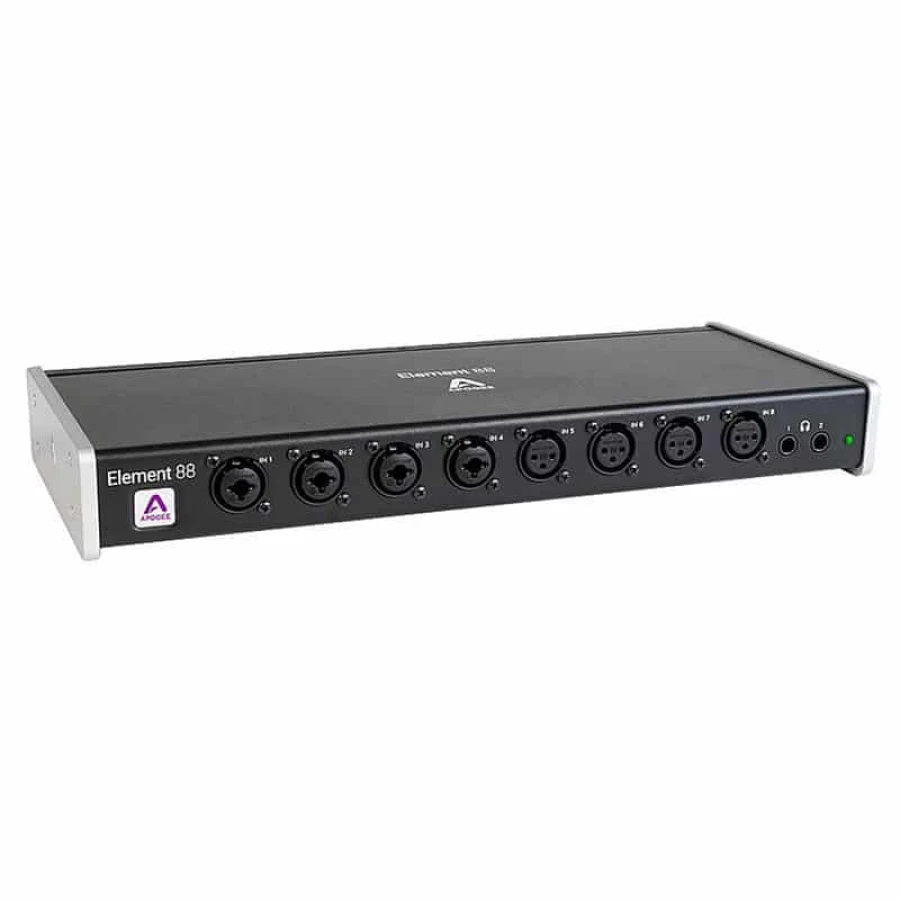

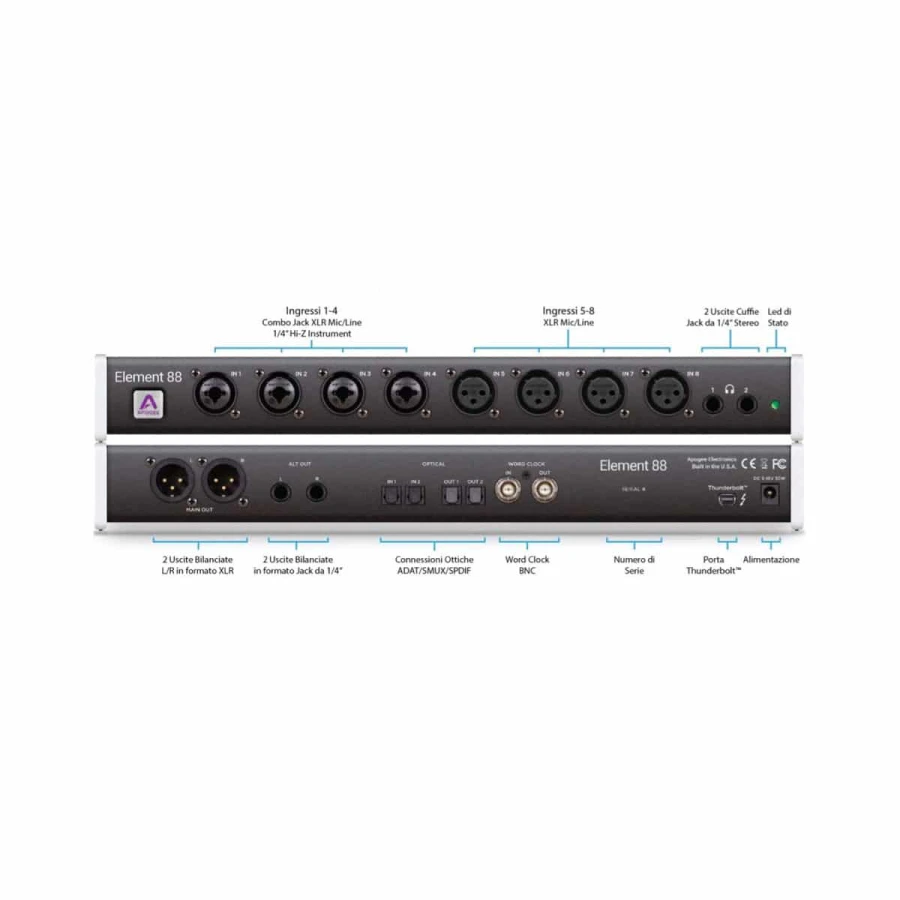

APOGEE ELEMENT 88

Apogee ELEMENT 88

Thunderbolt 2 Audio Interface

Highlights

• 16 IN x 16 OUT Audio I/O box
• AD/DA conversion for recording up to 192kHz/24-bit

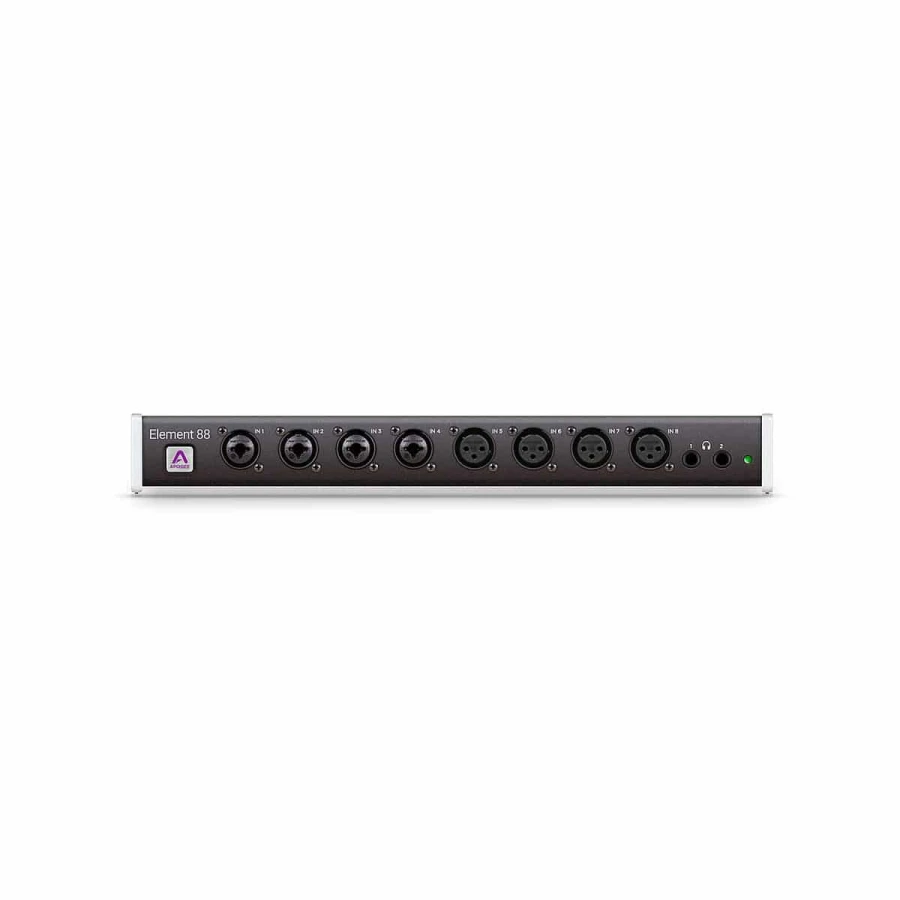

• 8 analog inputs with world-class mic preamps and selectable 48v phantom power for connecting microphones, instruments or line-level devices
  • 4 combination inputs
  • 4 XLR inputs
  • Gain: Up to 75 dB and advanced stepped gain circuit design
  • Selectable 48v phantom power, Soft Limit and polarity invert
  • EIN: 129dB (un-weighted) @ 60dB, 150Ohm input
  • Max input level: +20dBu
  • Input impedance: 3K Ohm

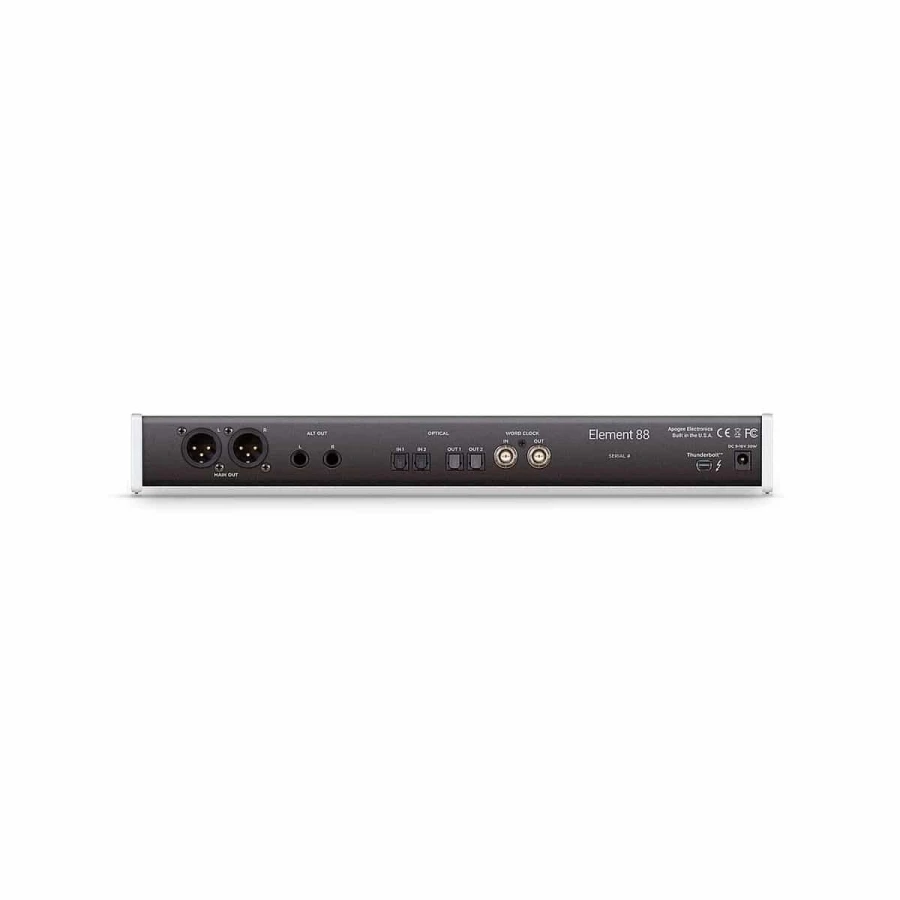

• 8 analog outputs
  • 2 balanced L/R XLR outputs
  • 2 balanced 1/4” outputs
  • 2 1/4” stereo headphone outputs
• Single port Thunderbolt connectivity to Mac for ultra-low latency performance
  • 1.41ms round-trip at 96kHz with a 32 buffer setting
• Optical IN: Supports ADAT, SMUX & S/PDIF
  • ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
  • SMUX: 8 channels 88.2-96 kHz on 2 Toslink connectors
  • S/PDIF: 2 channels, up to 192 kHz on 1 Toslink connector

• Optical OUT: Supports ADAT, SMUX & S/PDIF
  • ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
  • SMUX: 8 channels 88.2-96 kHz on 2 Toslink connectors
  • S/PDIF: 2 channels, up to 192 kHz on 1 Toslink connector
• Word Clock IN/OUT via BNC connections for syncing with other digital audio gear

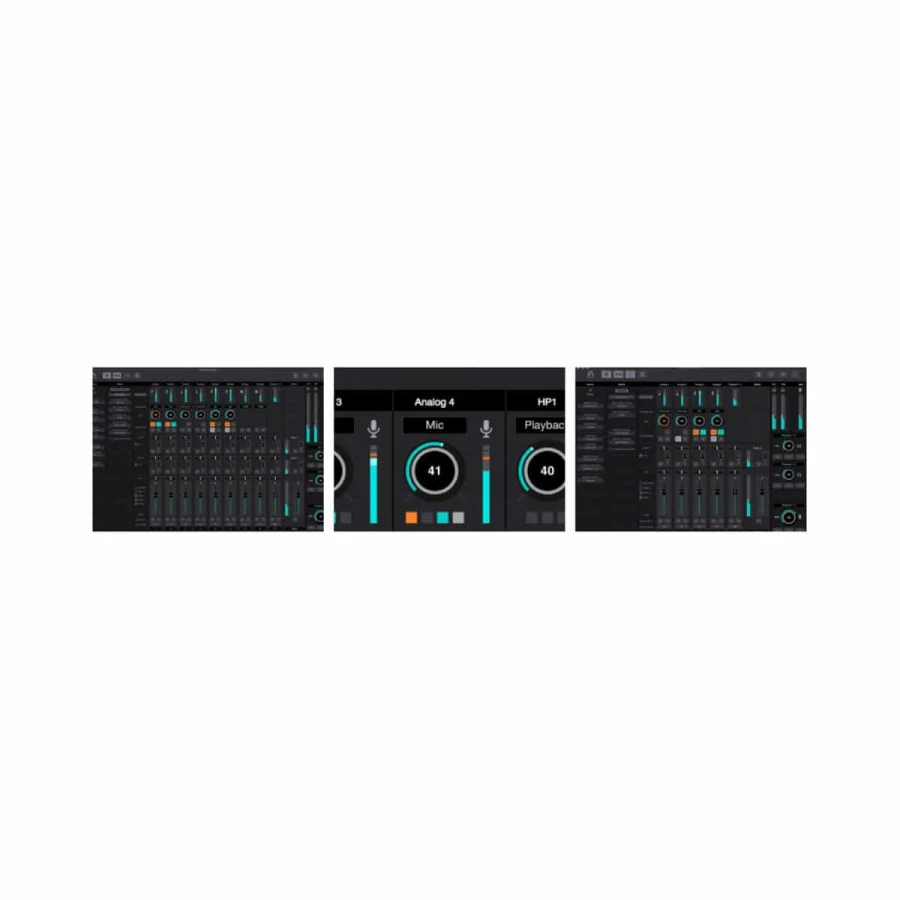

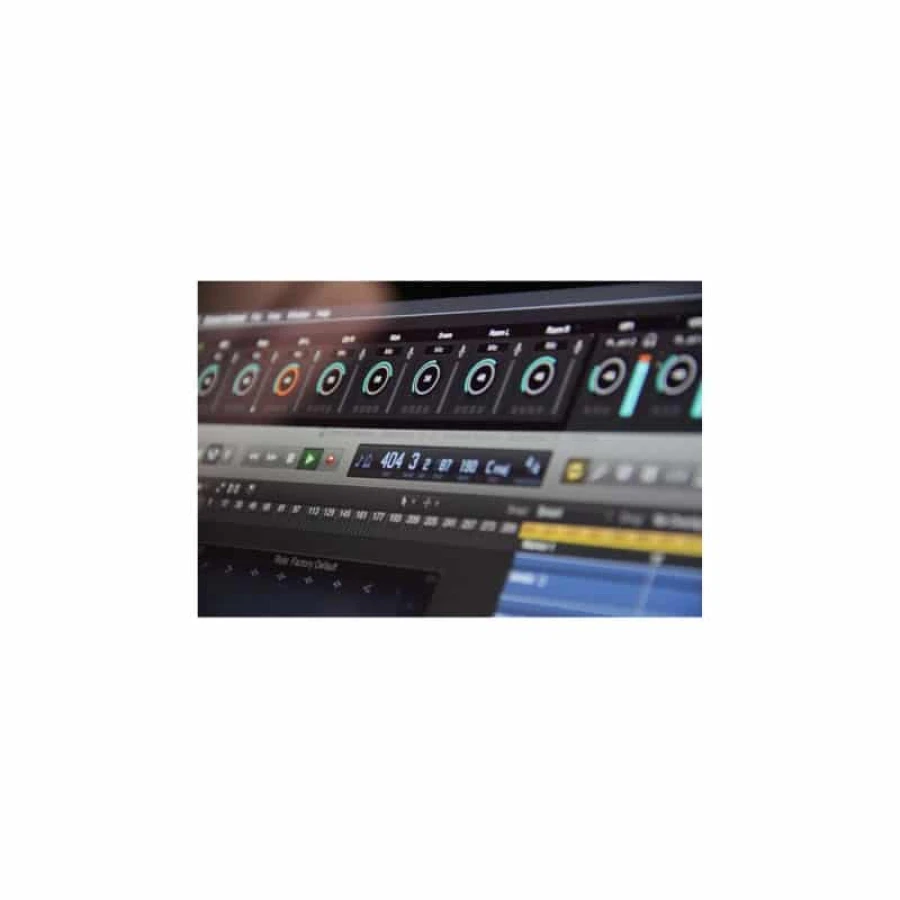

• Apogee Control Software for Mac provides all control of hardware parameters including input gain, output level and low latency monitoring

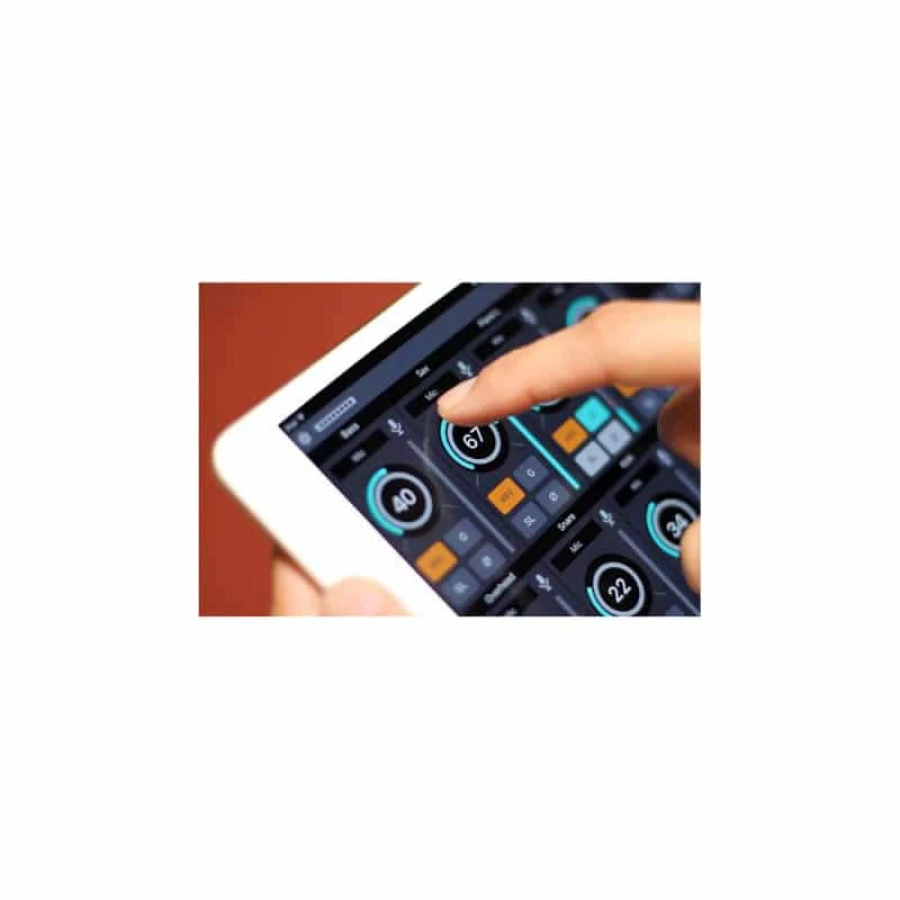

• Apogee Control Mobile App provides wireless remote control of hardware via iPhone, iPad or iPod touch

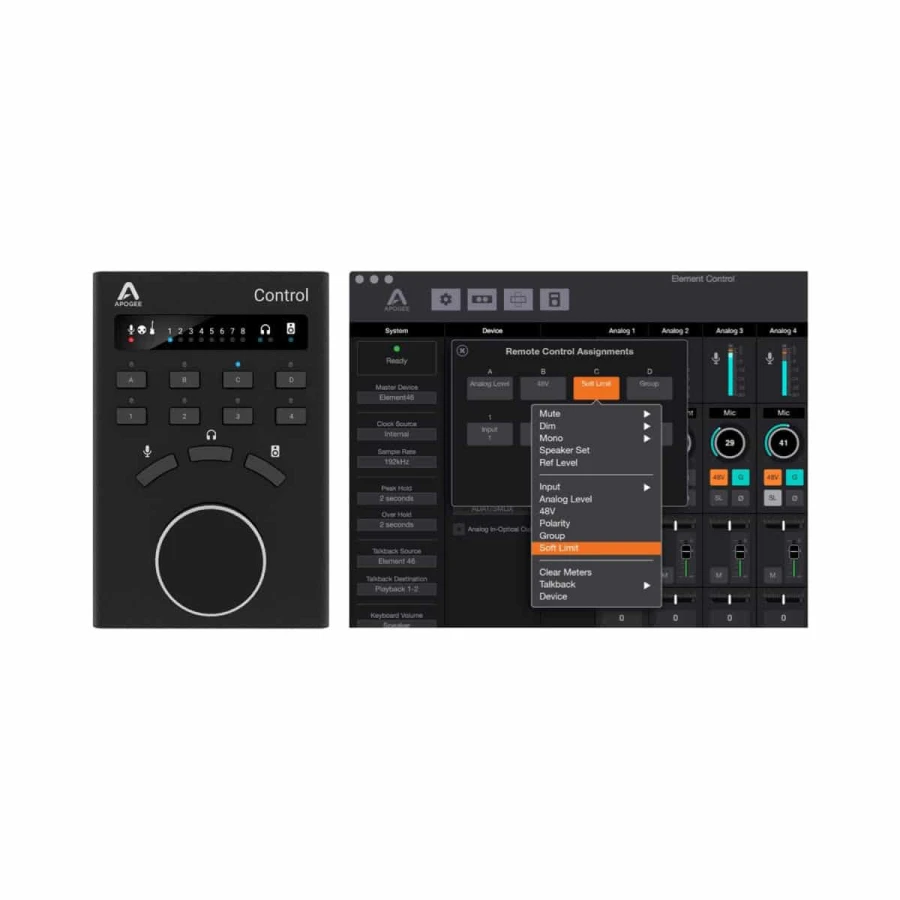

• Works with Apogee Control desktop hardware remote control (Sold separately)
• Multi-Unit Thunderbolt support – Connect any two Element audio I/O boxes directly to Thunderbolt ports on your computer
• Apogee Ensemble Thunderbolt expander – Connect any Element to the second port on an Ensemble
