ATC SCM110A SL

Active 3-way Nearfield studio monitor

SKU: 18482

Alternative products:

ATC SCM110A SL (Used)

€ 12.500,00 Ex VAT

For European customers, select your country to view the correct price including VAT.

€ 18.820,00 Ex VAT

For European customers, select your country to view the correct price including VAT.

Available to order
Normally delivered in 6 weeks

Add

Warranty extended to 6 anni

Let's stay in touchDiscover our opening hours

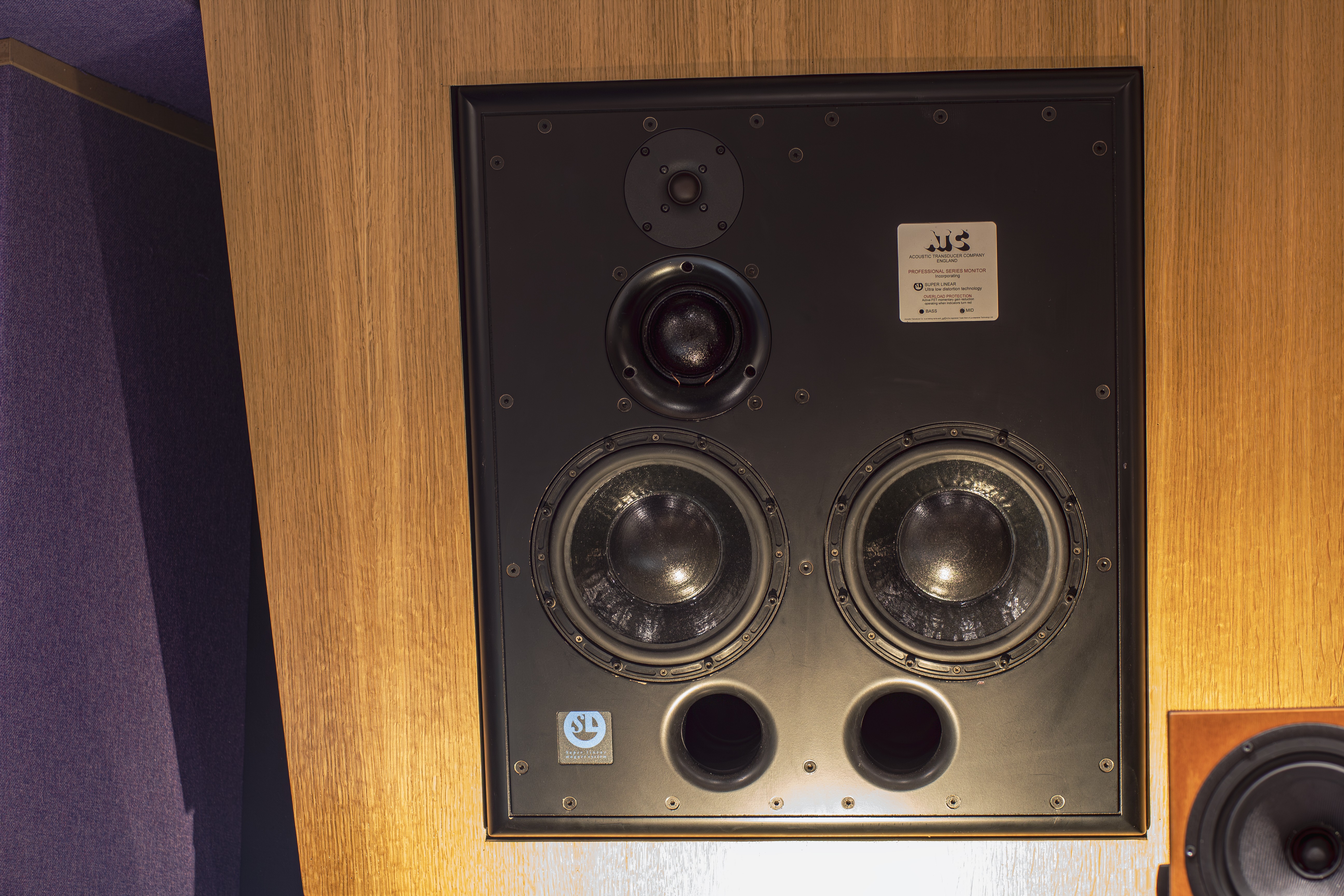

ATC SCM110 ASL

Active 3-way Nearfield studio monitor

25mm soft dome tweeter.
Twin full “SL” spec 9“/234mm bass driver.
ATC 75mm “Super Dome” mid driver.
On board ATC grounded plane 350W Tri-amplifier.
LF contour control.
Clip indication.

Price for pair

Specification

Drivers: HF 1″/25mm, Mid 3″/75mm, LF 2x 9″/234mm Amplitude Linearity (±2dB): 50Hz-17kHz Cut-off Frequencies (-6dB, free-standing): 30Hz, 22kHz Horizontal Dispersion: ±80°, Coherent Vertical Dispersion: ±10°, Coherent Max. Continuous SPL (1 metre): 115dB Crossover Frequencies: 380Hz, 3.5kHz Input Connectors: Male XLR Input Sensitivity: 1V Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer) Input Impedance: Balanced > 10kΩ Amplifier Output: Bass 200W, Mid 100W, High 50W Filters: Even Order Critically Damped Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection Front Panel Indicators: Power On indicator, Gain Reduction warning LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer) Dimensions (HxWxD): 715 x 625 x 420mm (28.2˝ x 24.5˝ x 16.5˝) Depth with amplifier at rear adds 3˝ Weight: 73kg / 160.6lbs

Speaker construction

3-ways

Speaker Packaging

Pair

Woofer

2x 9"

DSP

Speaker type

Active
