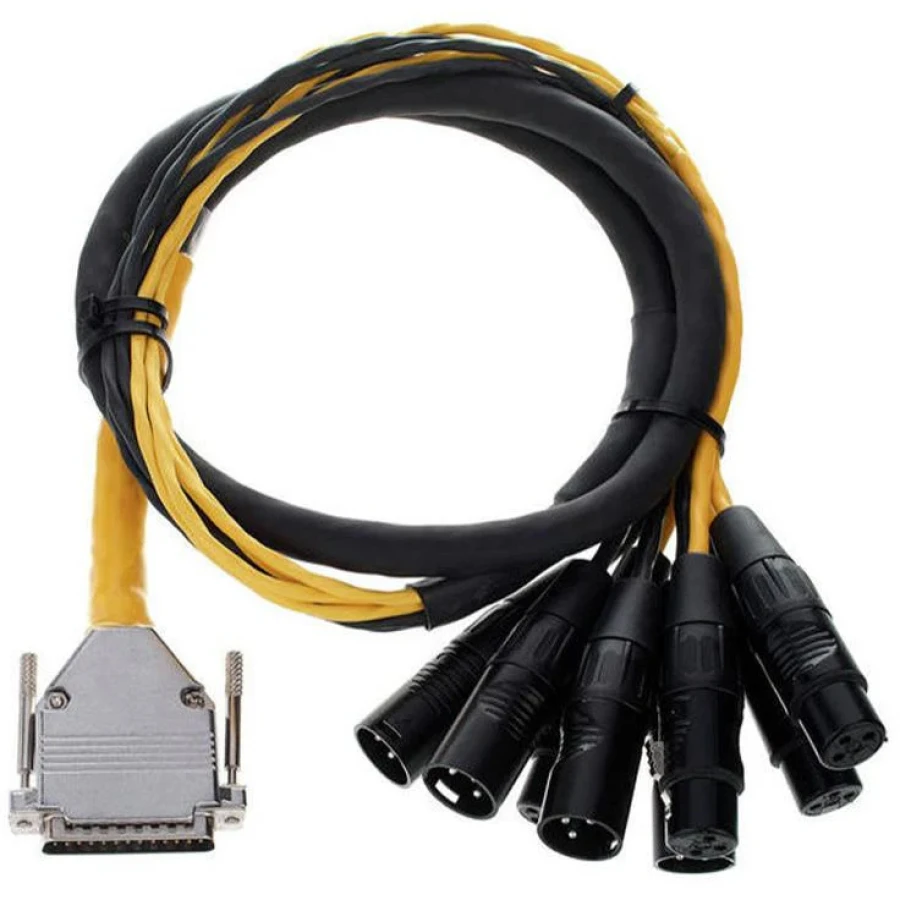

AVID DB25-XLR M+F AES/EBU DigiSnake, 4 INCH

AES/EBU D-sub - XLR 8-channel cable - 1.2 m

• Avid professional AES/EBU digital cable
• DB25 to 4 XLR male + 4 XLR female connection
• Transmit up to 8 digital audio channels
• Compatible with Pro Tools HD systems (192 I/O, 96 I/O)
• Length 1.2 meters (4 feet)
• 110Ω "digital grade" cable for maximum signal integrity
• Dedicated color coding for easy identification

Avid DB25-XLR AES/EBU cable for Pro Tools systems.

The Avid DB25-XLR M+F AES/EBU DigiSnake is a professional cable designed to connect external equipment to Avid HD systems, such as 192 I/O and 96 I/O. With a DB25 connection to 4 female and 4 male XLRs, it provides a reliable and tidy solution for handling digital audio in the studio.

Multi-channel digital audio transmission

Up to 16 channels at standard frequencies

Operating below 192kHz, the AES/EBU protocol allows the transmission of 2 channels per line. This allows the DigiSnake to handle up to 8 input and 8 output channels via the 8 XLR connectors.

192kHz performance

At 192kHz, the system uses dual wire transmission, allowing the cable to carry 4 input and 4 output channels while maintaining high audio quality and signal stability.

Professional construction and reliability

Made with 110Ω impedance digital cable, this DigiSnake ensures accurate and interference-free signal transmission. Color coding makes identification easy: female XLR connectors are marked in yellow and male XLR connectors in black, all clearly labeled for immediate use in the studio.

Technical Specifications.

• Type: AES/EBU DigiSnake
• Side 1 connector: DB25
• Side 2 connectors: 4 XLR male + 4 XLR female
• Length: 1.2 m (4 feet)
• Impedance: 110Ω
• Supported channels: up to 8 IN / 8 OUT (≤192kHz)
• 192kHz channels: 4 IN / 4 OUT
• Compatibility: Avid Pro Tools HD systems (192 I/O, 96 I/O)
• Color coding: XLRF yellow, XLRM black
