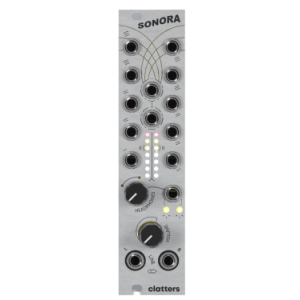

Clatters Machines Sonora (White)

Eurorack mix module and stereo output

• 12-input stereo mixer with fixed panning
• Precise spatial distribution for each track
• Pro line and headphone outputs with dedicated controls
• Limiter with built-in soft clipping
• Stereo LED indicators for volume monitoring

Ultimate stereo mixer for your Eurorack setup

Clatters Machines Sonora (White) is a spectral output and mixing module designed to become the ultimate convergence point for your Eurorack system. With its twelve inputs with fixed panning, each track finds its place in the stereo space, ensuring a neat, spacious, and balanced final output.

Precise sound control and visual monitoring

Sonora includes a soft clipping circuit on the output stage, a final volume control, and a stereo LED meter with 0dB reference indicator. The dedicated headphone output offers independent volume control and stereo LED indicators, ideal for immediate real-time loudness control.

Professional connections and solid construction

Outputs on 3.5mm pro-line jacks and a brushed anodized aluminum panel make Sonora not only aesthetically pleasing, but also rugged and suitable for intensive studio or live use.

Technical specifications.

• 2 hard left inputs
• 2 hard right inputs
• 2 mid left inputs
• 2 mid right inputs
• 1 low left input
• 1 low right input
• 2 mono inputs
• 3.5mm stereo headphone output with dedicated volume and stereo LED
• 3.5mm stereo line outputs
• Final volume control
• Stereo LED meter with 0dB reference
• Soft clipping circuit
• Width: 6HP

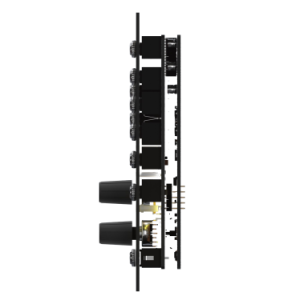

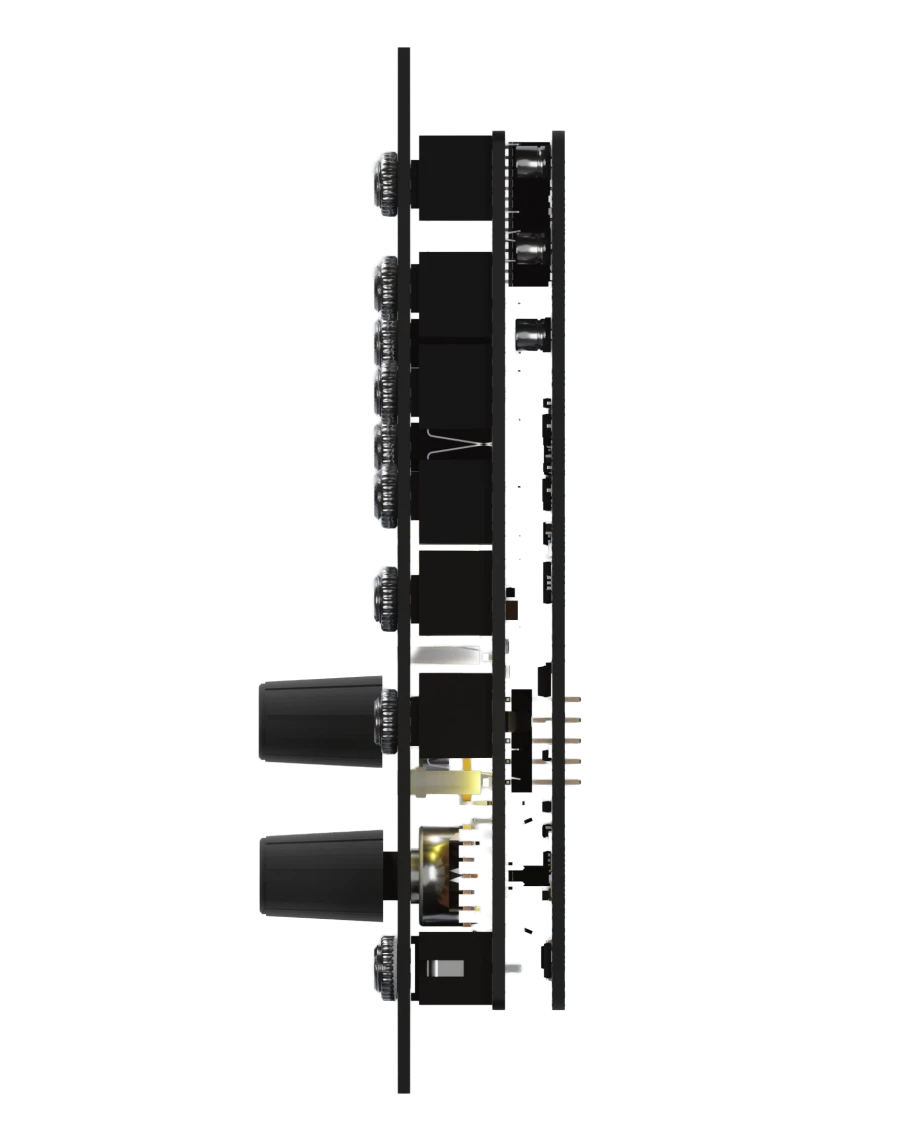

• Maximum depth: 22mm
• Power consumption: 41mA @ +12V / 32mA @ -12V / 0mA @ +5V
• Material: 2mm brushed anodized aluminum
• HTS Code: 8543.90.8885 & 9209.94.8000
