Cwejman ADSR-VC2

The ADSR-VC2 is a dual full analog envelope generator

SKU: 19329
  • Out of Stock

714,00 Ex VAT

For European customers, select your country to view the correct price including VAT.

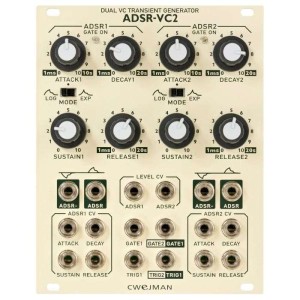

The ADSR-VC2 is a dual envelope generator with two identical, independent ADSR units which can be both triggered simultaneously by one single trigger due to a normalized jack. All parameters (attack, decay, sustain release and the output level) can be voltage controlled. Besides short A,D and R times a swicthabel characteristic of the attack for punchy and crisp envelopes, but also long envelope times are possible of course. Per envelope generator: attack time: 0.1ms to10s; decay time: 0.5ms-20s; sustain level: 0-8V; release time: 0.5ms-20s; characteristic of the attack changeable between logarythmic and exponential. Normal (0 – 8V) and inverted output (-8 – 0V), ADSR parameters and envelope output level voltage controllable Gate/Trig reacts on a threshold of 2V or higher, Gate 2 In is pre-patched to Gate 1 In; Trig 2 in is pre-patched to Trig 1 in Power consumption: 30mA CV-In: 14 x 3,5mm jack / CV-Out: 4 x 3,5mm jack (see big picture). Current draw: 30mA / weight: 330g


25 mm


20 hp
