Cwejman VCA-4mx

The VCA-4MX is a combo-module which besides being four independent premium VCAs

Cwejman
SKU: 19338
  • Out of Stock

613,00

For European customers, select your country to view the correct price including VAT.

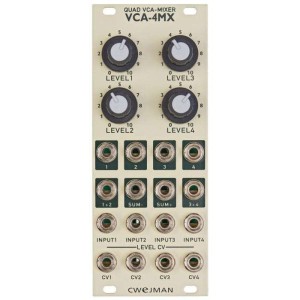

The VCA-4MX is a combo-module which besides being four independent premium VCAs also gives diverse mixing functions. Therefore you can also use the module as one 4-into-1-mixer or two 2-into-1-mixers. And of course you can also abuse it as four attenuators. Four identical VCAs with a frequency range of 0Hz-50kHz. The in- and outputs properly accept loud signals with a voltage amplitude of /-10V without distorting. All VCAs have separate outputs but there are also positive and inverted summing outputs that turn the VCA-4MX into a four channel mixer. Likewise there are outputs that carry the mixture of channels 1 2 or 3 4. The level of each channel can be altered manually and/or with a control voltage; the CV inputs have a semi-logarithmic characteristic. Generally all Cwejman modules are shielded from interferences and contain lots of calibration possibilities on the backside, see picture.

Width

10 hp
