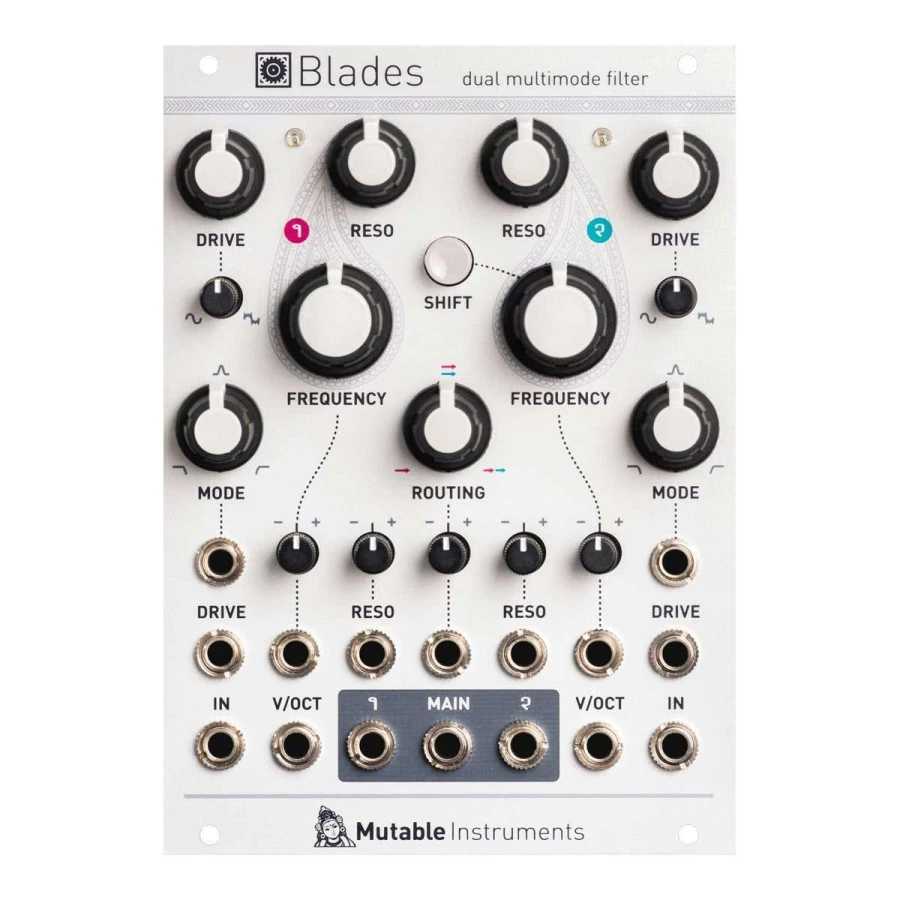

Mutable Instruments Blades

Double multimode filter state-variable

SKU: 50093

€ 290,00 Ex VAT

For European customers, select your country to view the correct price including VAT.

Out of Stock

Let's stay in touchDiscover our opening hours

CV-controlled overdrive circuit capable of wavefolding
clean 12dB/octave multimode filter self-oscillating cleanly across the audio range
Continuously variable (and CV-controlled) routing from single to parallel to series
18HP
25 mm deep

Mutable Instruments Blades

Doppio filtro multimodo a stato variabile

A CV-controlled overdrive circuit capable of wavefolding. A clean 12dB/octave multimode filter self-oscillating cleanly across the audio range. Times two. And this could have stopped here.

For all the in-betweens…

What sets Blades apart is that options commonly presented as multiple choices (low-pass or high-pass? serial or parallel?) are presented here as a continuum, ready to be explored at the twist of a knob or with a CV. The filter response is continuously variable between low-pass, band-pass and high-pass, and delivers intermediate shelving responses, for more nuanced spectral coloring. A dual crossfader circuit allows the routing between the two filters to smoothly vary from single to parallel to series.

And more…

Originally thought as a complex filter, Blades turns out to be capable of much more:

A dual distortion with spectral color control?
An oscillator mixer with crossfading, wavefolding, and enough filtering to clean up the mess?
A voice, using one filter as an oscillator, then distorting, folding it and filtering it with the second filter?
A complex oscillator capable of FM, PM and AM?

Dual multimode filter with CV-controlled, continuously variable filter response, filter routing, and an overdrive/wavefolding stage for each filter. An essential overdrive circuit

A CV-controlled overdrive stage precedes each of the two filters.
Overdrive response continuously adjustable between soft-clipping and 2-stage wavefolding.

Two rich multimode filters

Clean 2-pole (12dB/octave) state-variable design.
CV-controlled filter response, continuously variable between low-pass, band-pass and high-pass.
CV inputs with attenuverters for cutoff and resonance.
Unattenuated frequency CV input, calibrated for 1V/Oct tracking.
Clean and constant amplitude self-oscillation across the audio range, extending into very low frequencies.
Modulating the filter response is akin to modulating the phase of the self-oscillation tone.

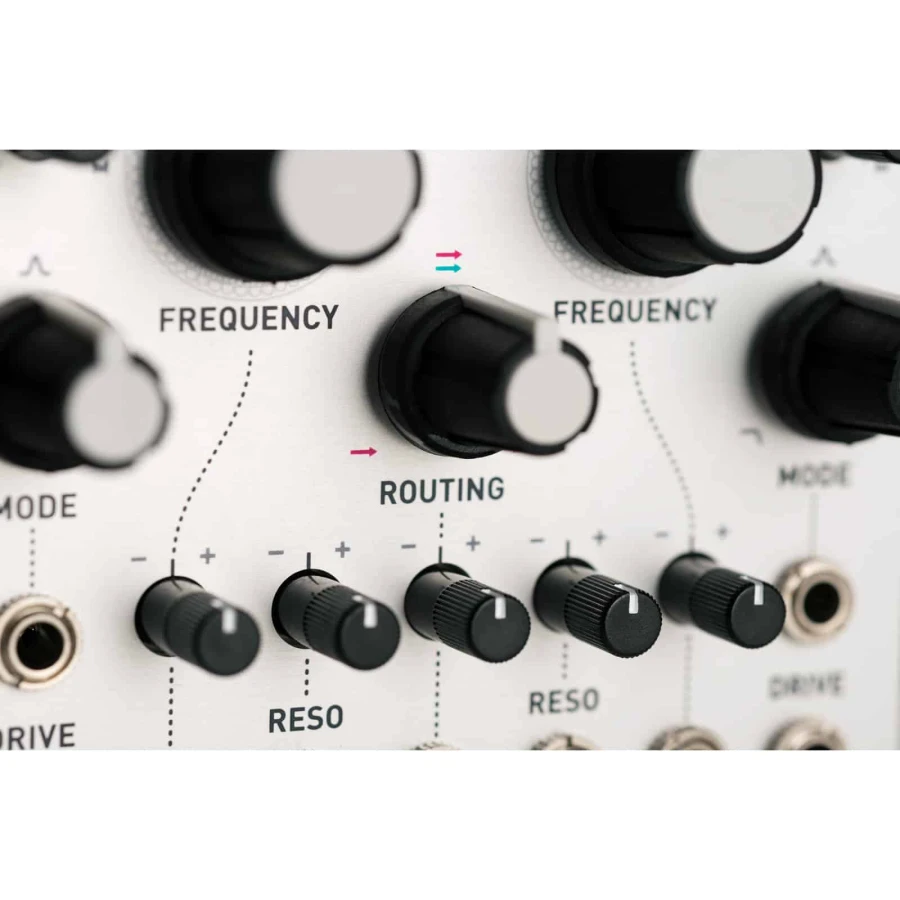

Unique routing possibilities

Continuously variable (and CV-controlled) routing from single to parallel to series.
With a signal patched into filter 2's audio input, the routing knob and CV act as a crossfader.
Filter 2's cutoff can be set relatively to filter 1's cutoff.

Features

Fully analog, based on the V2164 quad VCA chip.
Frequency knob range: 8Hz to 18kHz.
Audio input impedance: 30k.
DC-coupled audio inputs.
Filter mode CV input impedance: 50k.
Other CV inputs impedance: 100k.
All CV inputs handle audio-rate modulations.

Specifiche Tecniche

18HP
25 mm deep
+12V:150mA -12V:140mA

Depth

25 mm

Width

18 hp
