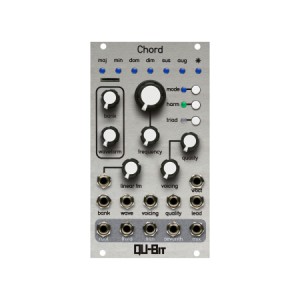

Qu-Bit Chord v2 (Silver)

Eurorack VCO wavetable Harmonic Module

• Polyphonic oscillator with four independent voices
• Intelligent tuning system for perfect musical harmonies
• Three operating modes: Chord, Free Running, Unison
• Eight banks of waveforms: from classical to vocal and chiptune sounds
• Supports custom wavetables via SD card (included)
• Aluminum front panel, only 14HP wide

Qu-Bit Chord v2: Creative polyphony in a compact format

Qu-Bit 's Chord v2 is a complete and intuitive solution for introducing musical polyphony within your Eurorack system. With its four independent oscillator voices, a wide variety of waveforms, and an automatic tuning system, this module opens up new harmonic and timbral possibilities for producers and sound designers.

Three operating modes for maximum versatility

Chord mode

The four voices are automatically tuned in diatonic intervals, making it easy to create complex chords and immediate harmonies.

Free Running Mode

Each voice can be managed individually, allowing the creation of sound textures and evolutionary drones.

Unison Mode.

All voices tune to the same internal frequency and can be played through separate CVs, ideal for precise sequencing and timbral layering.

Expand your sound palette

The module includes eight banks of waveforms ranging from classic waves (sine, square, saw) to vocal, organic and retro emulations. Support for custom wavetables via SD card allows for further expansion, with direct compatibility with Synthesis Technology's WaveEdit software.

Technical Specifications.

• Width: 14HP
• Depth: 23mm
• Power consumption: +12V 122mA / -12V 25mA / 0mA 5V
• Outputs: 4 independent outputs + 1 mix output
• Aluminum front panel
• SD card included
• Silver version
