UNIVERSAL AUDIO Apollo x16D Gen 2 Complete

18 x 20 Thunderbolt 3 Audio Interface with Dante

• 18 x 20 Thunderbolt 3 Rack-Mount Audio Interface with Dante® Connectivity
• 16 channels of Dante I/O with AES67 support at 48 kHz
• Apollo X audio conversion up to 24-bit / 192 kHz
• HEXA Core DSP processing for real-time UAD plug-ins
• UAD Complete Bundle with over 200 professional plug-ins included
• Plug-in Scenes recallable via MIDI during live performances
• Support for surround monitoring and immersive audio up to 9.1.6
• Expandable to up to 64 Dante channels by connecting four Apollo x16D units
• Dante network redundancy for live applications and professional installations
• Compatible with Apollo Thunderbolt, Mac, and Windows systems

The Universal Audio Apollo x16D Gen 2 Complete is an 18 x 20 rack-mount Thunderbolt 3 audio interface designed for networked recording studios, live sound systems, professional installations, broadcast, and Dante®-based audio productions. With 16 Dante channels, Apollo X 24-bit/192 kHz conversion, and a HEXA Core DSP processor, it allows you to record, mix, and process audio in real time using Universal Audio’s renowned plug-ins.

The Complete version includes over 200 UAD plug-ins for recording, mixing, mastering, sound design, and music production. The bundle includes emulations of preamps, channel strips, compressors, equalizers, reverbs, tape recorders, amplifiers, virtual instruments, and processors used in the world’s leading recording studios.

Universal Audio Apollo x16D with Dante Audio Networking

The Apollo x16D brings the Universal Audio workflow to Dante® audio networks. Its 16 channels of Dante I/O allow you to easily integrate the interface with digital consoles, broadcast systems, live event setups, multi-room studios, and professional audio networks.

Compatibility with AES67 at 48 kHz simplifies integration with compatible network systems, while the Thunderbolt connection allows you to use the Apollo x16D as part of a professional Apollo system for Mac or Windows.

HEXA Core DSP and Real-Time UAD Plug-Ins

The built-in HEXA Core DSP processor allows you to use UAD plug-ins with extremely low latency during recordings, concerts, events, and mixing sessions. Compressors, equalizers, channel strips, reverbs, delays, pitch correction, and creative effects can be inserted directly into the signal path.

Processing is handled by the interface’s internal DSP, reducing the load on the computer’s CPU and providing a stable, reliable system even during live performances and particularly complex productions.

UAD Complete Bundle with Over 200 Plug-Ins

The Apollo x16D Gen 2 Complete offers one of the most extensive software packages available for the Universal Audio platform. The bundle includes over 200 DSP and Native plug-ins dedicated to tracking, mixing, mastering, music production, post-production, and sound design.

The collection includes emulations of gear from Neve, API, SSL, Manley, Avalon, Teletronix, Fairchild, Pultec, Studer, Ampex, Lexicon, and many other legendary brands, along with virtual instruments, recording environments, guitar and bass amplifiers, and extensions for LUNA.

Plug-In Scenes for Live Sound and Professional Installations

The UAD Console app provides a powerful management environment for inputs, outputs, routing, monitoring, and plug-in chains. Plug-In Scenes let you quickly save and recall complete configurations, making it easy to adapt processing to different parts of a performance.

Scenes can also be recalled via MIDI, allowing you to change settings without interrupting the concert or session. This feature makes the Apollo x16D particularly well-suited for tours, festivals, venues, theaters, and complex live productions.

Apollo X 24-bit / 192 kHz Audio Conversion

Apollo X conversion delivers precise, transparent, and detailed reproduction up to 24-bit / 192 kHz. The Apollo x16D maintains the sound quality required by recording studios, broadcast installations, and professional live sound systems, preserving the signal’s dynamics, definition, and depth.

The AES stereo I/O also allows you to connect professional digital hardware and integrate the Apollo x16D with external converters, processors, and audio distribution systems.

Dante Expansion Up to 64 Channels

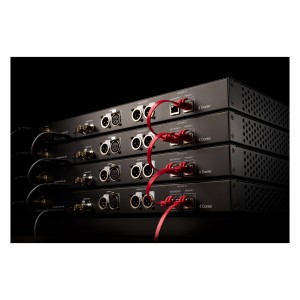

You can connect up to four Apollo x16D interfaces to build a 64-channel Dante system. Network redundancy increases the reliability of the infrastructure—a critical feature for live events, permanent installations, and productions where signal continuity is essential.

The Apollo x16D can also extend an existing Apollo Thunderbolt studio over Dante, allowing you to add rooms, recording stations, and new environments without having to replace the existing system.

Multi-Room Recording Studio via Ethernet

Thanks to the Dante network, any room with an Ethernet connection can be integrated into a distributed recording system. The Apollo x16D enables the creation of multi-room studios, remote recording rooms, separate control rooms, and hybrid configurations for recording and post-production.

Network routing allows you to distribute signals across different rooms while maintaining centralized management and the ability to use UAD plug-ins in real time.

Surround monitoring and immersive audio up to 9.1.6

After a live performance or network recording, the Apollo x16D can be used in the studio as a monitoring hub for stereo, surround, and immersive configurations up to 9.1.6.

Support for 16-channel immersive audio mixes allows you to work with Dolby Atmos, Auro-3D, Sony 360 Reality Audio, and other multichannel formats, using the same interface during both recording and post-production.

ALT Monitoring for Stereo and Immersive Audio

The Apollo x16D supports alternate monitors in all operating modes. You can manage two ALT systems in a stereo configuration or one ALT system while monitoring immersive audio, offering greater flexibility when checking mixes.

UAD Complete Plug-ins Included

The Complete version includes over 200 professional UAD plug-ins for recording, mixing, mastering, music production, post-production, and sound design.

Vocals & Pitch Correction

• Topline Vocal Suite
• Topline Key Finder

Channel Strips & Preamps

• API® Preamp
• API® Vision Channel Strip
• API® Vision Channel Strip Legacy
• Avalon® VT-737sp Channel Strip
• CS-1 Channel Strip
• Century Tube Channel Strip
• Helios® Type 69 Preamp and EQ
• LA-6176 Signature Channel Strip
• Manley® Reference Microphone Preamp
• Manley® VOXBOX Channel Strip
• Neve® 1073 Preamp & EQ
• Neve® 88RS Channel Strip
• Neve® 88RS Legacy Channel Strip
• Precision Channel Strip
• SSL® E Series Channel Strip
• SSL® E Series Channel Strip Legacy
• UA 610-A Preamp & EQ
• UA 610-B Preamp & EQ
• V76 Preamplifier

Compressors / Limiters

• API® 2500 Stereo Bus Compressor
• Chandler Limited® Zener Limiter®
• dbx® 160 Compressor / Limiter
• elysia•® alpha compressor V2
• elysia•® alpha Mix Compressor
• elysia•® mpressor
• Empirical Labs EL8 Distressor™
• Fairchild 660 Compressor
• Fairchild 670 Compressor
• Fairchild 670 Legacy Compressor
• FATSO® Jr. Tape Simulator & Compressor
• FATSO® Sr. Tape Simulator & Compressor
• Manley Variable Mu® Limiter Compressor
• Precision Buss Compressor
• Sonnox® Oxford Limiter v2
• Summit Audio® TLA-100A Compressor
• SSL® G Series Bus Compressor
• SSL® G Series Bus Compressor Legacy
• Teletronix LA-2 Classic Leveler
• Teletronix LA-2A Gray Classic Leveler
• Teletronix LA-2A Silver Classic Leveler
• Teletronix LA-2A Legacy
• Teletronix LA-2A Tube Compressor
• Teletronix LA-3A Classic Audio Leveler
• Tube-Tech® CL 1B Compressor
• Tube-Tech® CL 1B MkII Compressor
• UA 1176 FET Compressor
• UA 1176 Rev A Classic Limiter
• UA 1176AE Classic Limiter
• UA 1176LN Rev E Classic Limiter
• UA 1176LN Legacy
• UA 1176SE Legacy
• UA 175B Tube Compressor
• UA 176 Tube Compressor
• Valley People® Dyna-mite™
• Vertigo Sound® VSC-2 Compressor

Equalizers

• API® 550A Parametric EQ
• API® 560 Graphic EQ
• Brainworx® bx_digital V2 EQ
• Brainworx® bx_digital V2 Mono EQ
• Brainworx® bx_digital V3 EQ
• Brainworx® bx_digital V3 Mix EQ
• Cambridge EQ
• Dangerous® BAX Mix EQ
• Harrison® 32C Channel EQ
• Harrison® 32C SE Channel EQ
• Hitsville EQ
• Helios® Type 69 Legacy EQ
• Maag EQ4® MS Equalizer
• Maag EQ4® EQ
• Massenburg DesignWorks® MDWEQ5-3B Parametric EQ
• Manley® Massive Passive EQ
• Millennia® NSEQ-2 EQ
• Neve® 1073 Legacy Classic Console EQ
• Neve® 1073SE Legacy Classic Console EQ
• Precision Equalizer
• Pultec EQP-1A Legacy EQ
• Pultec EQP-1A Passive EQ
• Pultec HLF-3C Passive EQ
• Pultec MEQ-5 Passive EQ
• Pultec Pro Legacy EQ
• Sonnox® Oxford Dynamic EQ
• Sonnox® Oxford EQ
• Tonelux® Tilt EQ
• Tonelux® Tilt Live EQ
• Trident® A-Range Classic Console EQ
• Tube-Tech® ME 1B EQ
• Tube-Tech® PE 1C EQ

Special Processing

• A/DA® Flanger
• A-Type Multiband Dynamic Enhancer
• Ampex® ATR-102 Mastering Tape Recorder
• Brainworx® bx_saturator V2
• Brainworx® bx_subsynth Subharmonic Synthesizer
• C-Suite C-Vox™ Noise & Ambience Reduction
• Eventide® H910 Harmonizer
• Little Labs® IBP Phase Alignment Tool
• Little Labs® Voice Of God Bass Resonance
• Moog® Multimode Filter
• Moog® Multimode Filter SE
• Moog® Multimode Filter XL
• Oxide Tape Recorder
• OTO® BISCUIT 8-Bit Effects
• Precision De-Esser
• Precision Enhancer Hz
• Precision Enhancer kHz
• Softube® Vocoder
• Sonnox® Oxford Inflator
• Sonnox® Oxford Envolution
• Sonnox® Oxford SuprEsser DS
• SPL® TwinTube Processor
• SPL® Vitalizer MK3-T
• Studer® A800 Multichannel Tape Recorder
• Thermionic Culture Vulture
• Vertigo Sound® VSM-3 Mix Satellite
• Vibe Analog Machines
• Vibe Analog Machines Essentials

Instruments

• Anthem Analog Synthesizer
• Electra 88 Vintage Studio Keyboard
• Moog® Minimoog Synth
• Opal Morphing Synth
• PolyMAX Polyphonic Synth
• Ravel Grand Piano
• Waterfall B3 Organ

Delay & Modulation

• A/DA® STD-1 Stereo Tapped Delay
• Brigade Chorus Pedal
• Cooper® Time Cube MkII Delay
• EP-34 Tape Echo
• Galaxy Tape Echo
• KORG® SDD-3000 Digital Delay
• MXR® Flanger/Doubler
• Precision Delay Mod
• Precision Delay Mod L
• Studio D Chorus
• Waterfall Rotary Speaker

Reverbs & Rooms

• AKG® BX 20 Spring Reverb
• Capitol Chambers
• DreamVerb Room Modeler
• EMT® 140 Classic Plate Reverb
• EMT® 250 Electronic Reverb
• Hitsville Reverb Chambers
• Lexicon® 224 Digital Reverb
• Lexicon® 480L Digital Reverb and Effects
• Ocean Way Studios Deluxe
• Ocean Way Studios
• Precision Reflection Engine
• Pure Plate Reverb
• RealVerb Pro Custom Room Modeler
• UAD Sound City Studios

Mastering

• Brainworx® bx_masterdesk
• Brainworx® bx_masterdesk Classic
• Brainworx® bx_refinement
• Capitol Mastering Compressor
• Chandler Limited® Curve Bender Mastering EQ
• C-Suite C-Max™ Limiter
• Dangerous® BAX EQ Master
• elysia•® alpha Master Compressor
• Hitsville Mastering EQ
• Manley® Massive Passive Mastering EQ
• Precision K-Stereo Ambience Recovery
• Precision Limiter
• Precision Maximizer
• Precision Multiband
• Shadow Hills Class A Mastering Compressor

Guitar & Bass

• Ampeg® B-15N Bass Amplifier
• Ampeg® SVT-3 PRO Bass Amplifier
• Ampeg® SVT-VR Bass Amplifier
• Ampeg® SVT-VR Classic Bass Amplifier
• Bermuda Triangle
• Brainworx® bx_tuner
• Chandler Limited® GAV19T Amplifier
• C-Suite C-Axe™ Guitar Noise Suppressor
• Diezel® Herbert Amplifier
• Diezel® VH4 Amplifier
• Eden® WT800 Bass Amplifier
• ENGL® E646 VS Limited Edition
• ENGL® E765 Retro Tube
• ENGL® Savage 120 Amplifier
• Fender® ’55 Tweed Deluxe
• Friedman® BE100 Amplifier
• Friedman® Buxom Betty Amplifier
• Friedman® DS40 Amplifier
• Fuchs® Overdrive Supreme 50 Amplifier
• Fuchs® Train II Amplifier
• Gallien-Krueger® 800RB Bass Amp
• Marshall® Bluesbreaker 1962
• Marshall® JMP 2203
• Marshall® Plexi Classic
• Marshall® Plexi Super Lead 1959
• Marshall® Silver Jubilee 2555
• Raw Distortion
• Softube® Amp Room Half-Stack
• Softube® Bass Amp Room
• Softube® Bass Amp Room 8x10
• Softube® Metal Amp Room
• Softube® Vintage Amp Room
• TS Overdrive Pedal
• Sound Machine® Wood Works
• Suhr® PT100 Amplifier
• Suhr® SE100 Amplifier
• UAD Dream ’65 Reverb Amplifier
• UAD Lion ’68 Super Lead Amp
• UAD Ruby ’63 Top Boost Amplifier
• UAD Woodrow ’55 Instrument Amplifier
• UAD Showtime ’64 Tube Amp

LUNA Extensions

• Ampex® ATR-102 Master Tape Extension
• API® Summing Extension
• API® Vision Console Emulation
• Studer® A800 Multitrack Tape Extension

Technical Specifications

• 18 x 20 Rack-Mount Thunderbolt 3 Audio Interface
• 16 Dante® I/O channels
• Support for AES67 mode at 48 kHz
• Apollo X conversion up to 24-bit / 192 kHz
• Integrated HEXA Core DSP processing
• AES stereo I/O for professional digital hardware
• Plug-in scenes recallable via MIDI
• UAD plug-in processing with extremely low latency
• Compatible with over 200 UAD DSP and Native plug-ins
• UAD Complete Bundle with over 200 plug-ins included
• Support for 64-bit VST, AU, and AAX formats
• Compatible with UAD Console
• Control over inputs, outputs, routing, and plug-in chains
• Expandable by connecting up to four Apollo x16D units
• Dante system expandable up to 64 channels
• Dante network redundancy
• Compatible with Apollo Thunderbolt systems
• Suitable for multi-room recording studios
• Suitable for live events and professional venues
• Suitable for broadcast and post-production installations
• Supports surround and immersive monitoring up to 9.1.6
• Support for 16-channel immersive audio mixes
• Compatible with Dolby Atmos
• Compatible with Auro-3D
• Compatible with Sony 360 Reality Audio
• Support for two ALT monitors in stereo mode
• Support for one ALT monitor in immersive audio mode
• Compatible with Mac and Windows
• Free Universal Audio technical support
