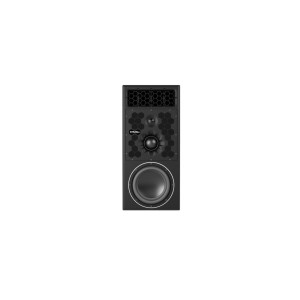

PMC 10 VERTICAL CENTER – 3-Way Vertical Center Monitor

Center channel - ATL top level 3-way midfield monitor with DSP

• Active 3-way midfield monitor with ATL™ and LaminairX™ technology.
• PMC drivers: 10" woofer, PMC75v3 midrange, 34mm tweeter
• PMC master36 external DSP power supply: 2600W per cabinet
• Digital crossover, transparent limiting and room EQ
• Analog and digital inputs (up to 192kHz)
• Remote control via LAN with SoundAlign2 interface
• Designed for immersive and multichannel applications

PMC 10 VERTICAL CENTER: the perfect center channel for immersive systems

PMC 10 VERTICAL CENTER is the vertically configured version of the famous PMC10, designed to serve as a center channel in professional multichannel systems. It provides tonal coherence and flawless performance in stereo, surround and immersive configurations.

Power, precision and consistent response

Equipped with a 10" woofer, PMC75v3 midrange and 34mm tweeter, this ATL™ cabinet-based center monitor delivers detailed and controlled reproduction. Ideal for immersive mix studios, post-production and mastering.

2600W DSP master36 amplification.

The PMC 10 VERTICAL CENTER uses the DSP master36 amplifier with 800W for tweeter and midrange, and 1000W for the woofer. The built-in DSP handles digital crossovers, environmental EQ and driver protection.

Remote control and modern compatibility

Controllable from LAN via SoundAlign2, it supports high-resolution digital and analog inputs. Vertical configuration optimizes sound dispersion and placement in complex systems.

Technical Specifications.

• Type: Active 3-way monitor in vertical configuration
• Drivers: 10" woofer, 75mm dome midrange, 34mm dome tweeter
• Power per cabinet: 2600W (HF 800W, MF 800W, LF 1000W)
• DSP: Digital crossover, limiting, environmental EQ
• Inputs: Analog and digital (up to 192kHz)
• Remote control via LAN with SoundAlign2
• Cabinet: H 770mm x W 355mm x D 420mm
• Weight: 52kg
• Ideal for: center channel in immersive/surround systems
