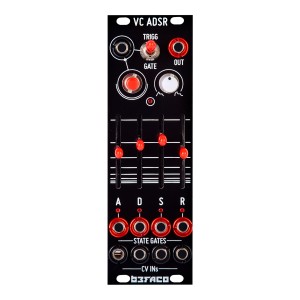

Voltage controlled ADSR with state gate outs
€ 160,00 Ex VAT
For European customers, select your country to view the correct price including VAT.
Normally delivered in 8-10 working days
The VC ADSR is our take on the classic ADSR: now smaller, more powerful and user friendly.
The circuit is based in a dual transistor “Current Mirror” (a voltage controlled integrator) and switching logic.
Phase Time Limits:
Attack: Min 3.0ms (down to 200µS with negative CV) // Max 10s
Decay: Min 2.8ms (down to 400µS with negative CV) // Max 10s
Release: Min 2.8ms (with Sustain at maximum) // Max 10s
Depth
26 mm
Width
8 hp
